Product Details
Place of Origin: Guangdong,China
Brand Name: Huaxing
Certification: CE
Model Number: HX36100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 800-1100$ per pcs
Packaging Details: 700*390*380 Wood case package
Delivery Time: 20-30 days
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
38.4V |
Nominal Capacity: |
100AH |
Max Current: |
100A |
Max Charge Voltage: |
43.8V |
Cut Off Voltage: |
30V |
Light Weight: |
48kg |
Small Size: |
630*320*280mm |
Long Life Cycles: |
2000 Cycles |
Application: |
Marine,Golf Cart,Sightseeing Car,solar System And So On |
Main Maket: |
North America,Europe,Asia,Australia |
Warranty: |
2 Years |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
38.4V |
Nominal Capacity: |
100AH |
Max Current: |
100A |
Max Charge Voltage: |
43.8V |
Cut Off Voltage: |
30V |
Light Weight: |
48kg |
Small Size: |
630*320*280mm |
Long Life Cycles: |
2000 Cycles |
Application: |
Marine,Golf Cart,Sightseeing Car,solar System And So On |
Main Maket: |
North America,Europe,Asia,Australia |
Warranty: |
2 Years |
Customized Constant Power 36V 100ah Lithium Ion Battery With BMS For Sightseeing Car/Golf Car
36V 100AH Lithium ion battery features
1.Long life cycles:Over 2000 cycles
2.High safety:No fire and explosion in overcharging and overdischarge test
3.Fast charging
4.Environmental friendly
5.Light weight
6.Wide working temperature -20~60℃
36V 100AH Lithium ion battery specification
| No. | Item | General Parameter |
| 1 | Model | HX36100 |
| 2 | Standard Capacity | 100AH |
| 3 | Rated Voltage | 38.4V |
| 4 | Max Charge Voltage | 43.8V |
| 5 | Discharge Cut Off Voltage | 30V |
| 6 | Standard Charge Current | 50A |
| 7 | Max Continuous Discharge Current | 100A |
| 8 | Peak Instant Discharge Current | 200Ah with 5S |
| 9 | Dimension(ABS) | 630*320*280mm |
| 10 | Total weight(Approx.) | 48kg |
| 11 | Operate Temperature | -20°C~60°C |
| 12 | Built-in BMS | YES |
| 13 | Cycle Times | 2000 cycles |
36V 100AH Lithium ion battery BMS specification
| Item | Content | Criterion |
| Charge and Discharge Port | Shared | |
| Communication | None | |
| Parallel Connection | Max 2 pcs | |
| Serial Connection | None | |
| Normal Current | Charge Current | ≤100A |
| Discharge Current | ≤100A | |
| Over charge Protection | Over charge detection voltage | 3.75±0.05V |
| Over charge detection delay time | ~1000mS | |
| Over charge release voltage | 3.55±0.05V | |
| Over charge release condition | Cut off charger | |
| Maximum charge voltage | 3.65±0.05V | |
| Over discharge protection | Over discharge detection voltage | 2.20V±0.10V |
| Over discharge detection delay time | 200ms | |
| Over discharge release voltage | 2.4V±0.10V | |
| Discharge over current protection | Discharge over current detection current | 330±30A |
| Discharge over current detection delay time | ~100±50ms | |
| Discharge over current release condition | Cut load | |
| Short circuit protection | YES | |
Main Applications:

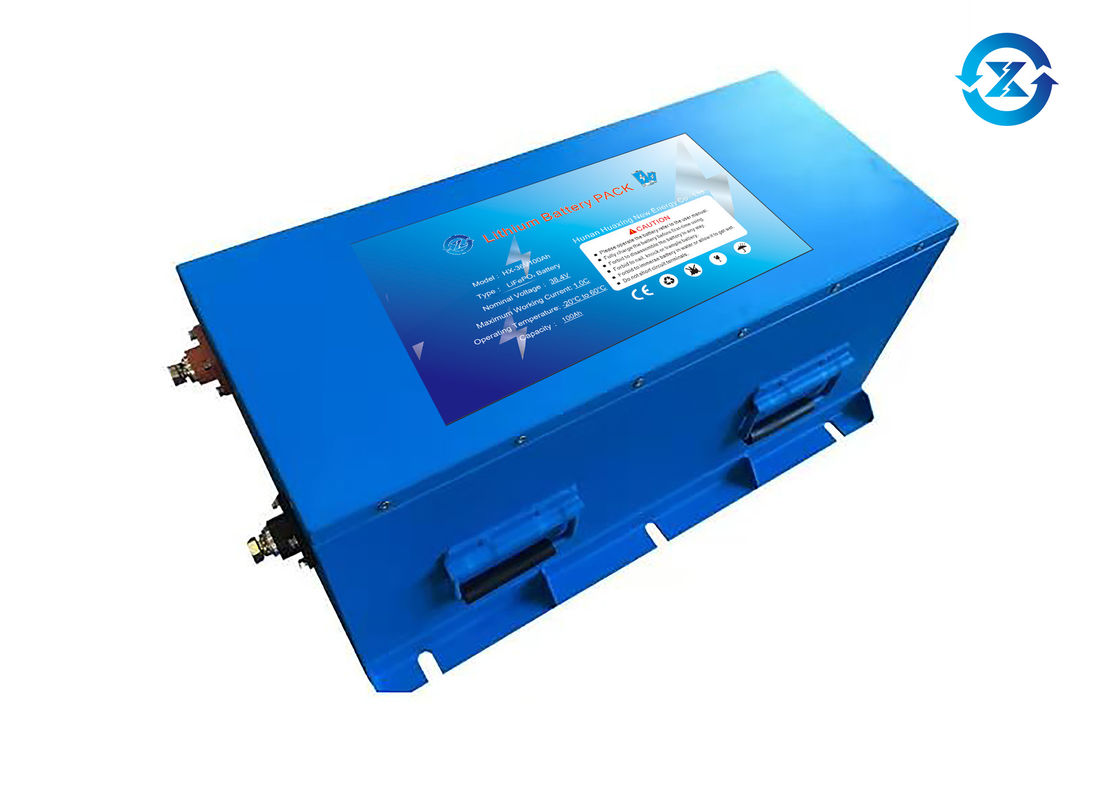

Product Picture
Package Information:
| DESCRIPTION | QUANTITY/CTN | PACKAGE | GROSS WEIGHT | NET WEIGHT | DIMS(m³) |
| (PCS) | WOOD CASE SIZE(MM) | (KG) | (KG) | ||
| 36V100AH LiFePo4 Battery | 1 | 700*390*380 | 60 | 48 | 0.1 |
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual production of 3GWh cell equipment and at technical R&D team.
