Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: CE
Model Number: HX24100
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: 1 pks per UN carton
Delivery Time: 20-25 days
Supply Ability: 100 pks per day
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
200Ah |
Max Constant Current: |
100A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
200Ah |
Max Constant Current: |
100A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |

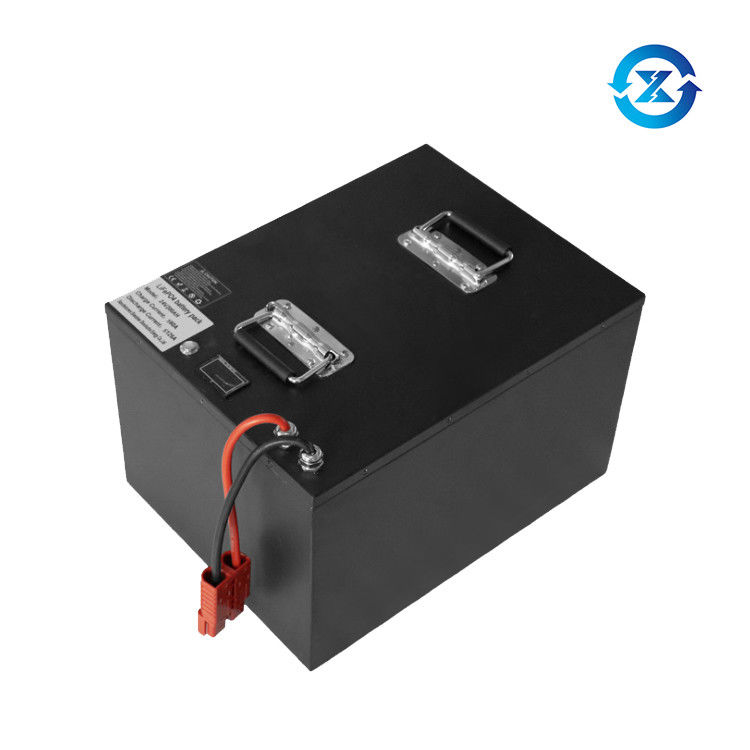

24V 200Ah LiFePo4 batteries for Lead-Acid Batteries Travel Trailer/Campervan
Products Features
1.This 24V130Ah LFP battery system has built-in BMS and stainless steel box painted in
black or white. 1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life (more than 3000 cycles at 80% DOD)
3. Bulit-in smart BMS with multiple protection and communication functions
4. Wide working temperature range and high reliability
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.
24V200ah LiFePo4 Batteries specification
|
No. |
Item |
General Parameter |
|
1 |
Model |
HX24200 |
|
2 |
Standard Capacity |
200AH |
|
3 |
Rated Voltage |
25.6V |
|
4 |
Max Charge Voltage |
29.2V |
|
5 |
Discharge Cut Off Voltage |
20V |
|
6 |
Standard Charge Current |
25A |
|
7 |
Max Continuous Discharge Current |
50A |
|
8 |
Peak Instant Discharge Current |
100A with 5S |
|
9 |
Dimension(ABS) |
578*410*198mm |
|
10 |
Total weight(Approx.) |
65kg |
|
11 |
Operate Temperature |
-20°C~60°C |
|
12 |
Built-in BMS |
YES |
|
13 |
Cycle Times |
2000 cycles |
Main Applications:
24V Stanadrd LiFePo4 battery
| 24V LiFePO4 Battery Pack | |||||||
| Battery Type | 24V6Ah | 24V10Ah | 24V20Ah | 24V30Ah | 24V50Ah | 24V100Ah | 24V130AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 | ||||||
| Nominal Capacity (Ah) | 6 | 10 | 20 | 30 | 50 | 100 | 130 |
| Charge Voltage (V) | 14.6 | ||||||
| Charge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Discharge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS | ||||||
| Protection Functions | short circuit, over charge, over discharge, over current, over temperature | ||||||
Package Information:
The comparison between SLA and LFP
| LFP battery | SLA battery | Remarks | |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2 years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead |
