Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: CE
Model Number: HX2430
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: US$270-320 per pks
Packaging Details: 1 pks per UN carton
Delivery Time: 20-25 days
Supply Ability: 100 pks per day
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
30Ah |
Max Constant Current: |
30A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Housing: |
ABS |
Weight: |
8Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
30Ah |
Max Constant Current: |
30A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Housing: |
ABS |
Weight: |
8Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |

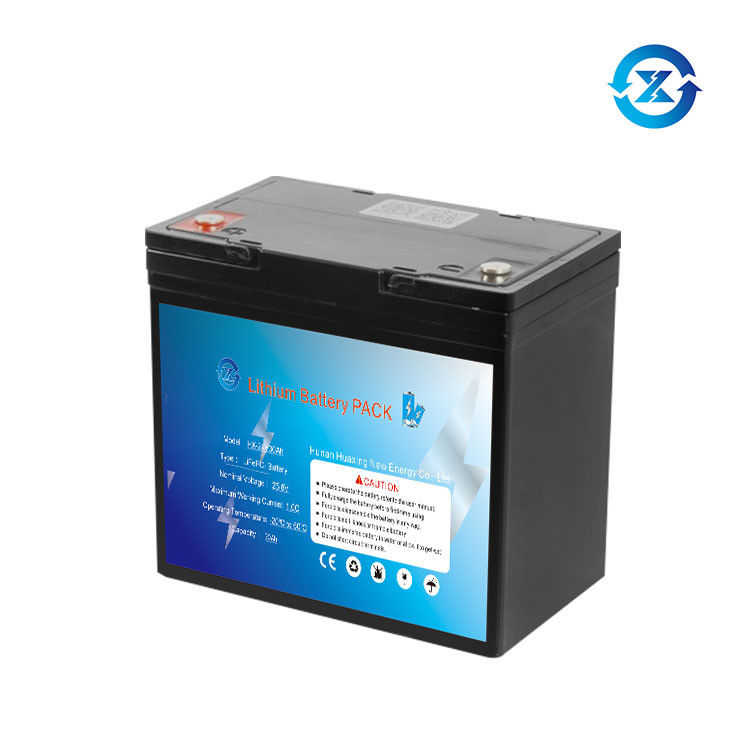

Light Weight High Output 24V30ah Lithium Ion Battery For 700W Electric Wheelchair
Products Features
Reliable,power lithium batteries
Wide applications:RV/Motorhome,Golf cart,Marine,Solar system
Light weight
Environmental friendly
24V30ah LiFePo4 Batteries specification
|
No. |
Item |
General Parameter |
|
1 |
Model |
HX2430 |
|
2 |
Standard Capacity |
30AH |
|
3 |
Rated Voltage |
25.6V |
|
4 |
Max Charge Voltage |
29.2V |
|
5 |
Discharge Cut Off Voltage |
20V |
|
6 |
Standard Charge Current |
10A |
|
7 |
Max Continuous Discharge Current |
30A |
|
8 |
Peak Instant Discharge Current |
60A with 5S |
|
9 |
Dimension(ABS) |
197*165*170mm |
|
10 |
Total weight(Approx.) |
8kg |
|
11 |
Operate Temperature |
-20°C~60°C |
|
12 |
Built-in BMS |
YES |
|
13 |
Cycle Times |
2000 cycles |
24V50ah LiFePo4 Batteries BMS specification
|
Item |
Content |
Criterion |
|
Charge and Discharge Port |
Shared |
|
|
Communication |
None |
|
|
Parallel Connection |
None |
|
|
Serial Connection |
Max. 2pcs |
|
|
Normal Current |
Charge Current |
≤30A |
|
Discharge Current |
≤30A |
|
|
Over charge Protection |
Over charge detection voltage |
3.75±0.05V |
|
Over charge detection delay time |
~1000mS |
|
|
Over charge release voltage |
3.55±0.05V |
|
|
Over charge release condition |
Cut off charger |
|
|
Maximum charge voltage |
3.65±0.05V |
|
|
Over discharge protection |
Over discharge detection voltage |
2.20V±0.10V |
|
Over discharge detection delay time |
200ms |
|
|
Over discharge release voltage |
2.4V±0.10V |
|
|
Discharge over current protection |
Discharge over current detection current |
150±30A |
|
Discharge over current detection delay time |
~100±50ms |
|
|
Discharge over current release condition |
Cut load |
|
|
Short circuit protection |
YES |
|
Main Applications:
24V Stanadrd LiFePo4 battery
| 24V LiFePO4 Battery Pack | |||||||
| Battery Type | 24V6Ah | 24V10Ah | 24V20Ah | 24V30Ah | 24V50Ah | 24V100Ah | 24V130AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 | ||||||
| Nominal Capacity (Ah) | 6 | 10 | 20 | 30 | 50 | 100 | 130 |
| Charge Voltage (V) | 14.6 | ||||||
| Charge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Discharge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS | ||||||
| Protection Functions | short circuit, over charge, over discharge, over current, over temperature | ||||||
Package Information:
|
DESCRIPTION |
QUANTITY/CTN |
PACKAGE |
GROSS WEIGHT |
NET WEIGHT |
DIMS(m³) |
|
(PCS) |
CARTONS SIZE(MM) |
(KG) |
(KG) |
||
|
24V30AH LiFePo4 Battery |
2 |
460*250*220 |
14 |
13 |
0.03 |
20ft container can load 600 pks 24V50Ah lithium battery pack
40ft container can load 1200 pks 24V50Ah lithium battery pack
