Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX48100S
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: Carton
Delivery Time: 25day
Payment Terms: T/T
Supply Ability: 50 pks per day
Nominal Voltage: |
51.2V |
Nominal Capacity: |
100Ah |
Battery Combination: |
16S18P |
Nominal Energy Capacity: |
5120Wh |
Max. Charge Current: |
50A |
Charge Time: |
2-5 Hours |
Max. Continuous Discharge Current: |
50A |
Peak Discharge Current: |
100A |
Total Weight: |
59KG |
Dimensions(L*W*H): |
578*410*198mm |
Nominal Voltage: |
51.2V |
Nominal Capacity: |
100Ah |
Battery Combination: |
16S18P |
Nominal Energy Capacity: |
5120Wh |
Max. Charge Current: |
50A |
Charge Time: |
2-5 Hours |
Max. Continuous Discharge Current: |
50A |
Peak Discharge Current: |
100A |
Total Weight: |
59KG |
Dimensions(L*W*H): |
578*410*198mm |

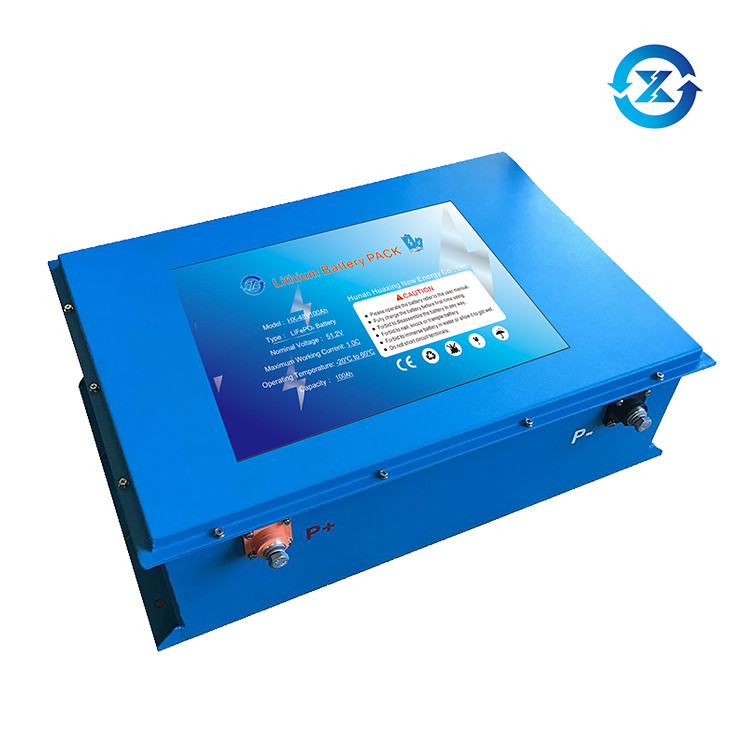

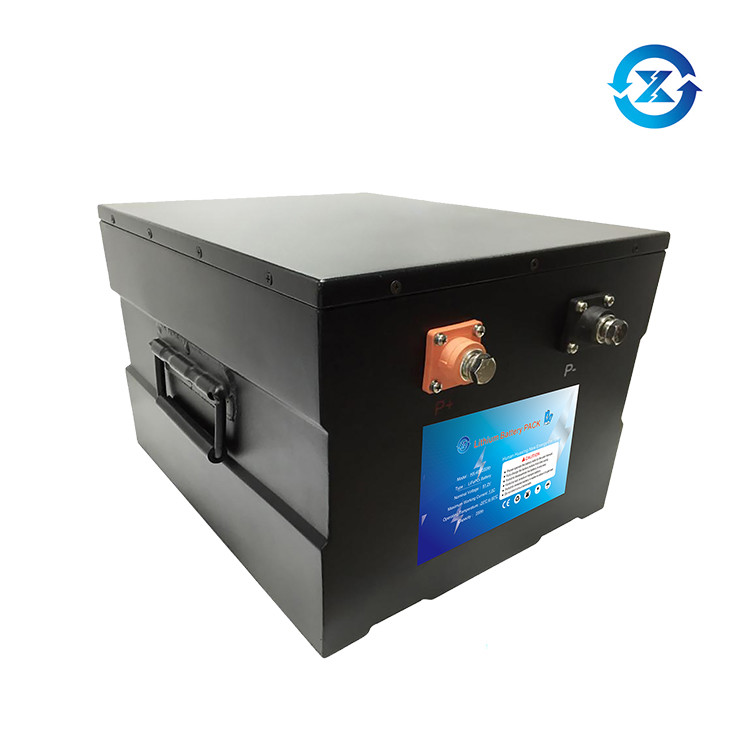

Solar Energy Storage System 51.2V100AH Deep Cycle Lithium Ion Battery Pack With Steel Case
|
No.
|
Item
|
General Parameter
|
|
1
|
Model
|
HX48100
|
|
2
|
Standard Capacity
|
100AH
|
| 3 |
Rated Voltage
|
51.2V
|
|
4
|
Max Charge Voltage
|
58.4V
|
|
5
|
Discharge Cut Off Voltage
|
40V
|
|
6
|
Standard Charge Current
|
50A
|
|
7
|
Max Continuous Discharge Current
|
100A
|
|
8
|
Peak Instant Discharge Current
|
200A with 5S
|
|
9
|
Dimension(ABS)
|
578*410*198mm
|
|
10
|
Total weight(Approx.)
|
65kg
|
| 11 |
Operate Temperature
|
-20°C~60°C
|
|
12
|
Built-in BMS
|
YES
|
| 13 |
Cycle Times
|
2000 cycles
|
Inner Cell performances:
HQ Office: Shenzhen Huaxing New Energy Co., Ltd.
Factory: Hunan Huaxing New Energy Co., Ltd.
Production:
About us:
Since its foundation, we have been insisting on the tenet of technical innovation, management
innovation and customer orientation and devote itself to becoming an export-oriented leading
enterprise of Lithium ion battery industry in China. We possesses an excellent technical team
who in lifepo4 battery industry. Our battery is of high safety, high power, long cycle life and
strong environmental adaptability friendly and are widely recognized on markets. Our battery
are used in many fields, such as power supply of electric vehicles, energy storage, security and
defense, medical devices, industrial automation, etc., providing customers with perfect product
application and technical proposals.
Cell packaging:
Battery packaging:
The comparison between LFP and NCM
| Items | LiFePO4 Battery | LiNiCoMnO2 Battery(NCM) |
| Nominal Voltage | 3.2V | 3.7V |
| Discharging Rate |
≤10C
|
≤5C |
| Safety | Much more safe at high temperature, or in an accident, no explosion, no fire, successfully pass the safety test | Less safety performance at high temperature, or in an accident. difficult to pass the safety test, such as nail penetration test |
| Working Temperature | -20-70℃. | -20-55℃. |
| Cycle Performance |
More than 4000 cycles at 1C, 80%DOD. The EOL is still 100% after 500 cycles |
About 1500 cycles at 1C, 80%DOD. The EOL is below 98% after 500 cycles |
| Stability | The Olivine type crystal structure is the most stable one, and not decompose in high temperature | The Layer type crystal structure is less stable, easy to decompose and collapse |
| Material | Does not contain any heavy metals and rare metals, raw material can be easily obtained | Co is rare metal, and very limit resource on the globe |
