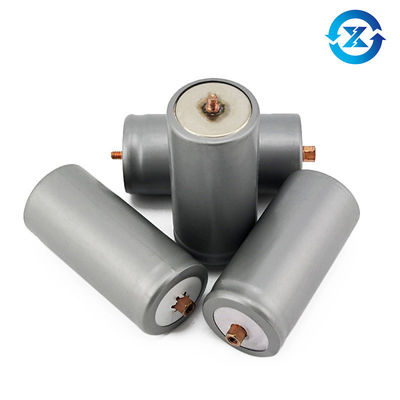

Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells

Product Details

Place of Origin: China

Brand Name: Huaxing

Certification: BIS,PSE,CE,IEC62133,IEC62619,IEC61960,UL,Rohs,UN38.3,MSDS

Model Number: 32700

Payment & Shipping Terms

Minimum Order Quantity: 80 pcs

Price: 1.2-1.9US$ per pcs

Packaging Details: 20 pcs in small cartons, 4 smalls carton packed in big carton=80 pcs per big carton

Delivery Time: 10-15 days

Payment Terms: T/T, L/C

Supply Ability: 500,000 pcs per day

Get Best Price
Product Details
Highlight:

IFR32700 LiFePO4 Cylindrical Cells

,

3.2V LiFePO4 Cylindrical Cells

,

IFR32700 3.2 V Lifepo4 Lithium Rechargeable Battery

Material:
LiFePO4/Graphite
Nominal Voltage:
3.2V
Nominal Capacity:
6AH
Discharge Rate:
3C
PVC Color:
Grey Or Blue
Operating Temperature:
-20~ 60 Deg.C
Cycle Life:
Over 2000 Cycles
Applications:
RV,Motorhome,Solar System,EVs
Warranty:
2 Years
Weight:
145g
Material:
LiFePO4/Graphite
Nominal Voltage:
3.2V
Nominal Capacity:
6AH
Discharge Rate:
3C
PVC Color:
Grey Or Blue
Operating Temperature:
-20~ 60 Deg.C
Cycle Life:
Over 2000 Cycles
Applications:
RV,Motorhome,Solar System,EVs
Warranty:
2 Years
Weight:
145g
Product Description

LiFePO4 Cylindrical Cells 32700 3.2V 6Ah IFR32700 Rechargeable Lithium ion Battery with Screw


Our Advantages:



These batteries are superior to lead-acid batteries because they have
One kind. Extremely safe and stable chemical composition: The built-in PCB
and/or BMS can balance and protect the battery.
b. Long life: It can be recycled, preferably 2000 times, which is 8 times that of lead-acid batteries.
C. Lighter weight, best power-to-weight ratio: 1/3 of the weight of lead-acid batteries.
d. Good high temperature and high temperature resistance
e. The self-discharge rate is low, less than 3% per month.
F. There is no memory effect and efficient charging.
G. Environmental protection: Clean and green energy will not pollute our environment.

1.Various sizes, models and capacities can be designed and customized, and OEM
customization is welcome.
2.Large capacity, light weight and long use time.
3.Long cycle life and high safety performance.



32700 6AH LFP Cell Specification
1 Battery Type LiFePO4 Battery
2 Rated Voltage/Capacity 3.20V/6.0Ah
3 Voltage Range 2.00V-3.65V
4 Weight 0.143kg
5 Size Φ(32.0±0.5)*H(70.2±0.4)mm
6 Cathode Material LiFePO4
7 Anode Material Graphite
8 Electrolyte Material LiPF6
9 Working Temperature Charge: 0℃~45℃, Discharge: -20℃~60℃
10 Charge Retention 95% (25℃, 28 days)
11 Cycle Times over 2000 cycles(0.2C cycle, 25℃,capacity retention 80%


Package&Delivery



DESCRIPTION QUANTITY/CTN PACKAGE GROSS WEIGHT NET WEIGHT DIMS(m3)
(PCS) CARTONS SIZE(MM) (KG) (KG)
32700 6AH 80 312*207*168 12.5 12 0.01




1.1*1.1*1m pallet can load 6000 pcs 32700 LFP cell(75 cartons).1 set 20ft container can load 10 pallets.So 1 set 20ft container can load 60,000-72,000 pcs.



Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells 0

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.



During transportation, 50% SOC must be kept to ensure that short circuit, appearance of liquid in the battery or immersion of battery in liquid never occur.


Cell should be kept at -20°C-45°C in warehouse where it’s dry, clean and well-ventilated.


During loading of battery, attention must be paid against dropping, turning over and serious stacking.




Application

Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells 1


Why Choose LiFePo4 Batteries Rather Than Lead Acid Batteries ?
1.Longer battery life – 5000times life cycle @60%DOD, 5 times more than lead acid batteries
2.Low self-discharge <3.5% per months
3.Free of charge memory
4.Steady discharge and charge performance.
5.Outstanding thermal stability
6.Wide temperature performance
7.Short circuit protection
8.Over charge and over discharge protection
9.Over current protection
10.Easy carrying and installation - can be carried and installed in any direction
11.Fast charging - about 4~6 hours to be fully charged
12.Lighter weight - 1/2~1/4 in weight compared to LA batteries
13.Require no change to a lead acid battery charging system
14.Better safety - mild warm, no explosion and firing, free of leakage
15.Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals
16.No gasses during charge, free of leakage and pollution


32700 6AH LFP cell certificate

Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells 2


Huaxing New Energy
Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells 3

About us:
HUAXING NEW ENERGY is a group company.

The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its subsidiary companies
including Hunan Huaxing New Energy Technology Co., Ltd which produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4 battery pack.

We has over 50,000 m2 CELL and PACK workshop. With an annual productivity of 3GWh
cell equipment and a technical R&D team, its annual sales volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and ISO45001:2018.
Our 32700 lifepo4 cell passes: UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional customized serive, Competitive
price, and Great sales team.
ONLY IN 32700 LIFEPO4 BATTERY
FUCOUS MAKES US PROFESSIONAL!!!

Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells 4

Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells 5

Long Life 3.2V IFR32700 LiFePO4 Cylindrical Cells 6


Why you choose us cylidnrical LiFePo4 cell

Items



Cylindrical



Prismatic
Safety

1,Steel case, mechanically stable, higher unloading ability because of round shape

2,Safety valve protection and tabs disconnecting for high pressure





1,plastic and Aluminum plastic shell mostly, poor mechanical character, especially during crash

2,Safety valve protection only, tabs wouldn’t disconnect even for high pressure

Internal Structure



The cathode and anode pole piece is one piece, better to keep conformity



Many negative and positive pole pieces connected in parallel
Others

1,Good for cooling and temperature controlling,

2, Easy and cost lower for replacement

3,High-maturity and standardized process like A123,Panasonic,LG

1, Poor cooling because of compact stack

2,Cost higher when the cell need for replacement

3,Hard to keep standard model for all manufacturers
