ABS Housing Light Weight 11.5kg 90Ah 12V LiFePO4 Batteries

Basic Information
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX1290
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 50 pks per day
Voltage: 12.8V Capacity: 90Ah
Max Charge Current:: 90A Max Discharge Current:: 90A
Peak Current: 150A Operating Temperature: -20℃-60℃, -22°F ~ 176°F (-30℃~80℃)
Housing: ABS Color: Black
Cycle Life: Over 2000 Cycles Light Weight: 11.5kg
High Light:

90Ah 12V LiFePO4 Batteries

,

4kg 12V LiFePO4 Batteries

,

90Ah Lithium Iron Phosphate Battery

New Design Deep Cycle 12V LiFePO4 Batteries 90Ah Lithium Iron Phosphate Battery Storage


Product Description:

These batteries are superior to lead-acid batteries because they have
One kind. Extremely safe and stable chemical composition: The built-in PCB
and/or BMS can balance and protect the battery.
b. Long life: It can be recycled, preferably 2000 times, which is 8 times that of lead-acid batteries.
C. Lighter weight, best power-to-weight ratio: 1/3 of the weight of lead-acid batteries.
d. Good high temperature and high temperature resistance
e. The self-discharge rate is low, less than 3% per month.
F. There is no memory effect and efficient charging.
G. Environmental protection: Clean and green energy will not pollute our environment.

1.Various sizes, models and capacities can be designed and customized, and OEM
customization is welcome.
2.Large capacity, light weight and long use time.
3.Long cycle life and high safety performance.


12V 90AH LiFePo4 Battery Basic Specification:

No. Item General Parameter
1 Model HX1290
2 Standard Capacity 90AH
3 Rated Voltage 12.8V
4 Max Charge Voltage 14.6V
5 Discharge Cut Off Voltage 10V
6 Standard Charge Current 50A
7 Max Continuous Discharge Current 90A
8 Peak Instant Discharge Current 150Ah with 5S
9 Dimension(ABS) 350*167*183mm
10 Total weight(Approx.) 11.5kg
11 Operate Temperature -20°C~60°C
12 Built-in BMS YES
13 Cycle Times 2000 cycles

Main Applications:

  • RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, security golf cart,forklift and so on.
  • Telecommunication, back-up power supply, UPS
  • Storage energy for solar system, solar street, home energy storage and so on

ABS Housing Light Weight 11.5kg 90Ah 12V LiFePO4 Batteries 0


Appearance: Without break, scratch, distortion, contamination, leakage and so on.

Inner Cell performances:
Our factory passes ISO9001:2015 and ISO14001:2015

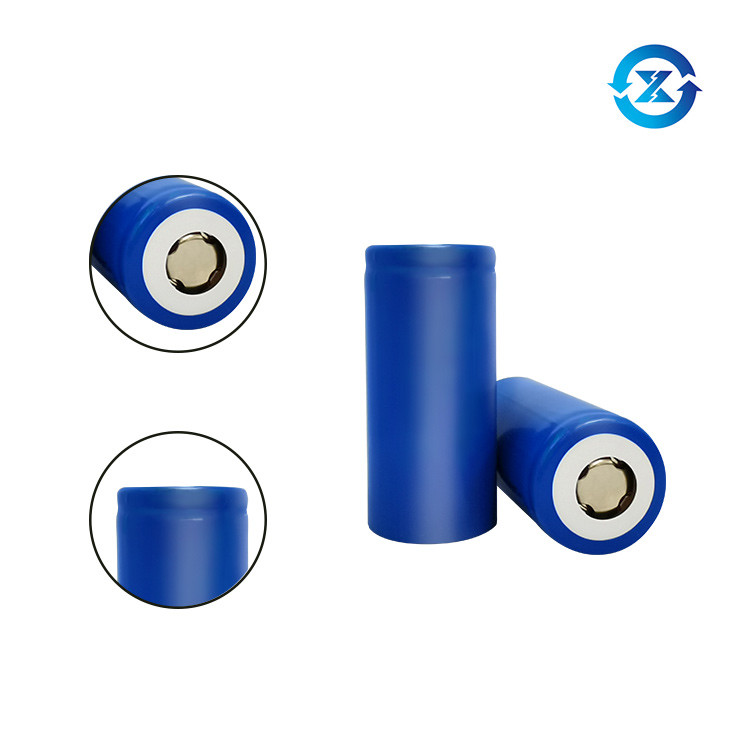

Our 32700 lifepo4 cells pass UL1642/BIS/PSE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3/MSDS.
ABS Housing Light Weight 11.5kg 90Ah 12V LiFePO4 Batteries 1
ABS Housing Light Weight 11.5kg 90Ah 12V LiFePO4 Batteries 2


Company Information

HQ Office: Shenzhen Huaxing New Energy Co., Ltd.

Factory: Hunan Huaxing New Energy Co., Ltd.

battery manufacturer

Production:

---_02

Certifications:

certificate

About us:

Hunan Huaxing New Energy Technology Co., Ltd., a subsidiary of
Shenzhen Huaxing New Energy Co. Ltd., is  R&D, production and
sales of 32700 lifepo4 cells and its PACK.

We has over 50,000 m2 CELL and PACK workshop. With an annual productivity of 3GWh cell
equipment and a technical R&D team, its annual sales volume can reach RMB two billion, paying
annual tax of RMB 100 million for the local area.


Since its foundation, we have been insisting on the tenet of technical innovation, management

innovation and customer orientation and devote itself to becoming an export-oriented leading

enterprise of Lithium ion battery industry in China. We possesses an excellent technical team

who in lifepo4 battery industry. Our battery is of high safety, high power, long cycle life and

strong environmental adaptability friendly and are widely recognized on markets. Our battery

are used in many fields, such as power supply of electric vehicles, energy storage, security and

defense, medical devices, industrial automation, etc., providing customers with perfect product

application and technical proposals.


We strictly abides by quality standard systems, and our battery passes UL1642/BIS/PSE/Rohs/
IEC62619/IEC61960/IEC62133/ and CB/UN38.3. etc.And  ISO9001:2015 and ISO14001:2015 .
Packaging & Shipping

Cell packaging:

cell ctn package


Battery packaging:

ABS Housing Light Weight 11.5kg 90Ah 12V LiFePO4 Batteries 7
