Product Details
Place of Origin: Guangdong,China
Brand Name: Huaxing
Certification: MSDS
Model Number: HX1236
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: Customized
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 50 pks per day
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
12.8 |
Nominal Capacity: |
36AH |
Working Current: |
10A |
Max Charge Voltage: |
14.6 |
Cut Off Voltage: |
10V |
Light Weight: |
4kg |
Small Size: |
314*211*38mm |
Long Life Cycles: |
2000 Cycles |
Application: |
Marine,Golf Cart,Sightseeing Car,solar System And So On |
Main Maket: |
North America,Europe,Asia,Australia |
Warranty: |
2 Years |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
12.8 |
Nominal Capacity: |
36AH |
Working Current: |
10A |
Max Charge Voltage: |
14.6 |
Cut Off Voltage: |
10V |
Light Weight: |
4kg |
Small Size: |
314*211*38mm |
Long Life Cycles: |
2000 Cycles |
Application: |
Marine,Golf Cart,Sightseeing Car,solar System And So On |
Main Maket: |
North America,Europe,Asia,Australia |
Warranty: |
2 Years |

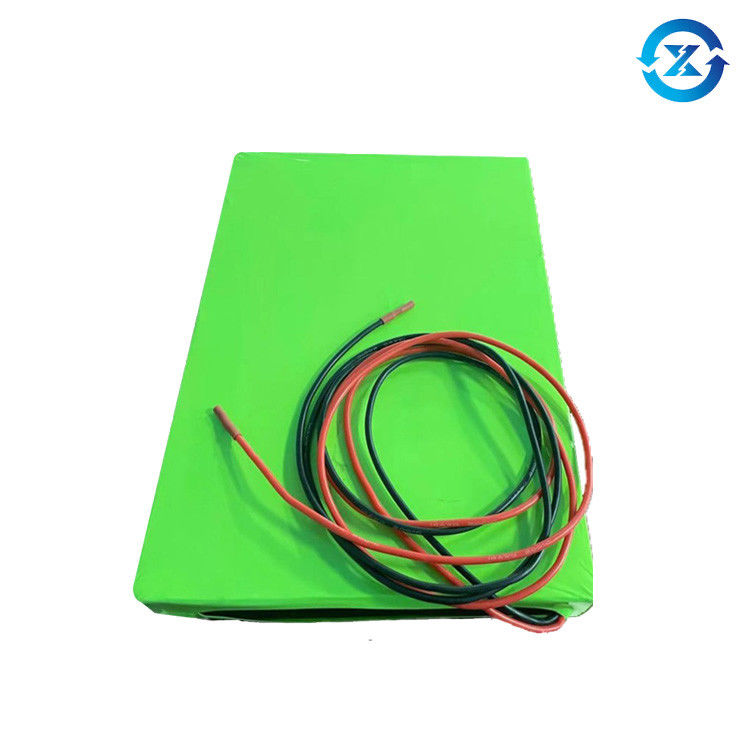

Deep Cycle 36AH 12V Lifepo4 Battery Pack for Solar Stree Light
Deep Cycle 36AH 12V Lifepo4 Battery Pack for Solar Stree Light
1.Best solution to replacement of lead acid battery 12V/48V
2.Marine power energy storage, boat, yachts, sailing back-up power supply
3.RV/camping energy storage for appliances, such lights, refrigerator, heating and so on.
4.Light electric vehicle, like golf cart, scooter, E-rickshaw, two/three wheelers
12V 36AH LiFePo4 battteries specification
| No. | Item | General Parameter |
| 1 | Model | HX1236 |
| 2 | Standard Capacity | 36AH |
| 3 | Rated Voltage | 12.8V |
| 4 | Max Charge Voltage | 14.6V |
| 5 | Discharge Cut Off Voltage | 10V |
| 6 | Standard Charge Current | 10A |
| 7 | Max Continuous Discharge Current | 10A |
| 8 | Peak Instant Discharge Current | 20A |
| 9 | Dimension PVC | 314*211*38mm |
| 10 | Total weight(Approx.) | 4kg |
| 11 | Operate Temperature | -20°C~60°C |
| 12 | Built-in BMS | YES |
| 13 | Cycle Times | 2000 cycles |
Main Applications:
24V Stanadrd LiFePo4 battery
| 24V LiFePO4 Battery Pack | |||||||
| Battery Type | 24V6Ah | 24V10Ah | 24V20Ah | 24V30Ah | 24V50Ah | 24V100Ah | 24V130AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 | ||||||
| Nominal Capacity (Ah) | 6 | 10 | 20 | 30 | 50 | 100 | 130 |
| Charge Voltage (V) | 14.6 | ||||||
| Charge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Discharge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS | ||||||
| Protection Functions | short circuit, over charge, over discharge, over current, over temperature | ||||||
Package Information:
The comparison between SLA and LFP
| LFP battery | SLA battery | Remarks | |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2 years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead |
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual production of 3GWh cell equipment and at technical R&D team.
