| Place of Origin: | China |
|---|---|
| Brand Name: | Huaxing |
| Certification: | CE MSDS,UN38.3 |
| Model Number: | HX12100 |
| Minimum Order Quantity: | 10 |
| Price: | US$270-320 per pks |
| Packaging Details: | 1 pks per UN carton |
| Delivery Time: | 20-25 days |
| Supply Ability: | 100 pks per day |
| Material: | LiFePo4/Graphite | Nominal Voltage: | 12.8V |
|---|---|---|---|
| Nominal Capacity: | 100Ah | Max Constant Current: | 100A |
| Max Charge Voltage: | 14.6V | Cut Off Voltage: | 10V |
| Plastic Case: | 328±1*171±1*215±1mm | Weight: | 13Kg |
| Cycles Life: | 2000 Cycles | Warranty: | 2 Years |
| Certificate: | UN 38.3,MSDS | Application: | RV,motorhome,Camper Trailer, |
| High Light: | 100Ah 12V LiFePO4 Batteries,UN 38.3 12V LiFePO4 Batteries,12V 100Ah Lithium Ion LiFePo4 Battery |
||

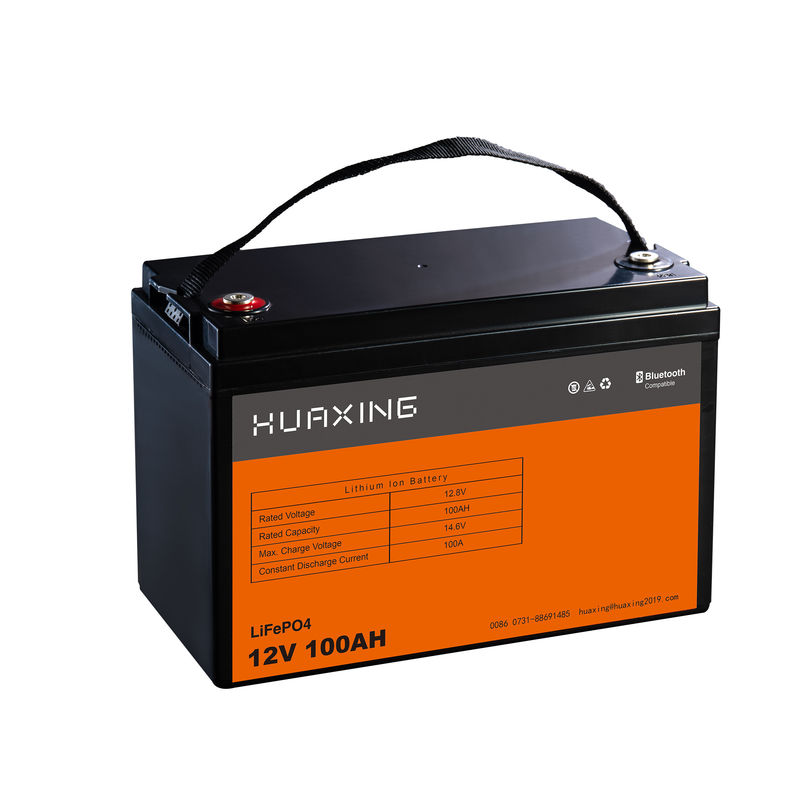

High Output 100Ah 12V LiFePO4 Batteries For RV Motorhome Yacht
High Output 12V Lithium Ion LiFePo4 Battery With Software BMS For RV,Motorhome,Yatch
Products Features
Reliable,power lithium batteries
Wide applications:RV/Motorhome,Golf cart,Marine,Solar system
Light weight
Environmental friendly
12V 100AH Lithium ion LiFePo4 battery specification
|
No. |
Item |
General Parameter |
|
1 |
Model |
HX12100 |
|
2 |
Standard Capacity |
100AH |
|
3 |
Rated Voltage |
12.8V |
|
4 |
Max Charge Voltage |
14.6V |
|
5 |
Discharge Cut Off Voltage |
10V |
|
6 |
Standard Charge Current |
50A |
|
7 |
Max Continuous Discharge Current |
100A |
|
8 |
Peak Instant Discharge Current |
200A with 5S |
|
9 |
Dimension(ABS) |
328±1*171±1*215±1mm |
|
10 |
Total weight(Approx.) |
13kg |
|
11 |
Operate Temperature |
-20°C~60°C |
|
12 |
Built-in BMS |
YES |
|
13 |
Cycle Times |
2000 cycles |
Inner structure
12V 100AH Lithium ion battery BMS specification
|
Item |
Content |
Criterion |
|
Charge and Discharge Port |
Shared |
|
|
Communication |
None |
|
|
Parallel Connection |
None |
|
|
Serial Connection |
Max. 4pcs |
|
|
Normal Current |
Charge Current |
≤100A |
|
Discharge Current |
≤100A |
|
|
Over charge Protection |
Over charge detection voltage |
3.75±0.05V |
|
Over charge detection delay time |
~1000mS |
|
|
Over charge release voltage |
3.55±0.05V |
|
|
Over charge release condition |
Cut off charger |
|
|
Maximum charge voltage |
3.65±0.05V |
|
|
Over discharge protection |
Over discharge detection voltage |
2.20V±0.10V |
|
Over discharge detection delay time |
200ms |
|
|
Over discharge release voltage |
2.4V±0.10V |
|
|
Discharge over current protection |
Discharge over current detection current |
330±30A |
|
Discharge over current detection delay time |
~100±50ms |
|
|
Discharge over current release condition |
Cut load |
|
|
Short circuit protection |
YES |
|
Main Applications:
Package Information:
|
DESCRIPTION |
QUANTITY/CTN |
PACKAGE |
GROSS WEIGHT |
NET WEIGHT |
DIMS(m³) |
|
(PCS) |
CARTONS SIZE(MM) |
(KG) |
(KG) |
||
|
12V100AH LiFePo4 Battery |
1 |
460*250*220 |
14 |
13 |
0.03 |
20ft container can load 600 pks 12V100Ah lithium battery pack
40ft container can load 1200 pks 12V100Ah lithium battery pack
