Product Details
Place of Origin: China
Brand Name: HUAXING
Payment & Shipping Terms
Minimum Order Quantity: 1
Payment Terms: T/T
Rated Battery Capacity(kWh): |
215 |
Rated Voltage(V): |
768 |
Voltage Range(Vdc): |
720-840 |
Size[W X D X H,mm: |
1 |
DOD: |
95% |
Operating Temperature: |
-20℃~55℃ |
Enclosure Protection Rating: |
IP55 |
Weight: |
2.6T |
Protection: |
Overcharge/Overdischarge/Short Circuit/Reverse Polarity |
Communication Interface: |
RS485,Ethernet |
Protocol: |
Modbus RTU,Modbus TCP,IEC104 |
Cooling Strategy: |
Industrial Air Conditioning |
Rated Battery Capacity(kWh): |
215 |
Rated Voltage(V): |
768 |
Voltage Range(Vdc): |
720-840 |
Size[W X D X H,mm: |
1 |
DOD: |
95% |
Operating Temperature: |
-20℃~55℃ |
Enclosure Protection Rating: |
IP55 |
Weight: |
2.6T |
Protection: |
Overcharge/Overdischarge/Short Circuit/Reverse Polarity |
Communication Interface: |
RS485,Ethernet |
Protocol: |
Modbus RTU,Modbus TCP,IEC104 |
Cooling Strategy: |
Industrial Air Conditioning |

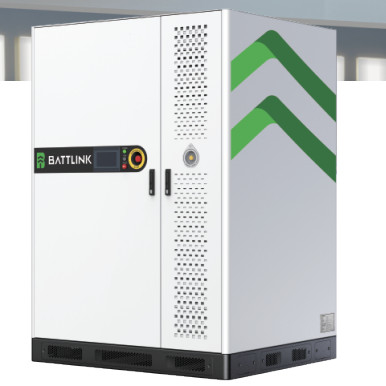

215Kwh Lithium Iron Phosphate LiFePO4 Commercial ESS Cabinet Energy Storage Systems
The BATTLINK 215 commercial & industrial energy storage system adopts the All in one design concept.
The cabinet is integrated with battary management system (BMS),energy management system (EMS),modular power conversion system(PCS),and fireprolectian system.
The system’s capecify is up to 215 kwh and the power is up to 100 kW.
The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start(The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault.).
The BATTLINK 215 intelligent energy storage system is directly connected to the low-voltage side, and can realize multi-connection cabinets and flexible expansion.
It is the best choice for all industrial and commercial application scenarios.
Hunan Huaxing New Energy Technology Co., Ltd is a high quality Lithium Ion
Battery company, integrating R&D, manufacturing and sales, providing comprehensive solutions for any application.
-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover
Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017, IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS
Our production Lines:
Our production Lines:
HUAXING LIFEPO4 BATTERY PACK ROOMS:
System Parameters
Rated Battery Capacity(kWh) | 215 |
Rated Voltage(V) | 768 |
Voltage Range(Vdc) | 720-840 |
Charge and Discharge Rate(P) | ≤0.5 |
Max. Round Trip Efficiency | 93% |
DOD | 95% |
Cooling Strategy | Industrial Air Conditioning |
Cycle Lifetime at EOL 80% | ≥6000cycles |
Fire Fighting System | Perfluorohexanone |
Rated Power(kW) | 100 |
Rated AC Voltage(Vac) | 380/400 |
AC Voltage Range | -15%~+10% |
Size[W x D x H,mm] | 1520*1270*2117 |
Weight(T) | 2.6 |
Enclosure Protection Rating | IP55 |
Operating Temperature Range(℃) | -20-+55(>45 drop) |
Operating Humidity Range | 0-95% |
Maximum Working Altitude(m) | ≤4000(>2000 drop) |
Communication Interface | RS485,Ethernet |
Protocol | Modbus RTU,Modbus TCP,IEC104 |
Rated Grid Frequency(Hz) | 50/60 |
