Shenzhen Huaxing New Energy Technology Co.,Ltd joan.deng@huaxingenergy.com 86--0755-89458220
Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: 12.8V 50Ah-300Ah
Payment & Shipping Terms
Minimum Order Quantity: 10pcs
Price: Nigotiation
Packaging Details: Carton
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per month
Total Energy: |
640Wh-3840Wh |
Rated Voltage: |
12.8V |
Rate Capacity: |
50Ah 100Ah 150Ah 200Ah 300Ah |
Cell Technology: |
LifePO4 |
Certificates: |
CE / UN38.3 |
Cycle Life: |
4000 Timea |
IP Rating: |
IP67 |
Operating Temperature: |
-20～60°C (-4～140°F) |
Total Energy: |
640Wh-3840Wh |
Rated Voltage: |
12.8V |
Rate Capacity: |
50Ah 100Ah 150Ah 200Ah 300Ah |
Cell Technology: |
LifePO4 |
Certificates: |
CE / UN38.3 |
Cycle Life: |
4000 Timea |
IP Rating: |
IP67 |
Operating Temperature: |
-20～60°C (-4～140°F) |

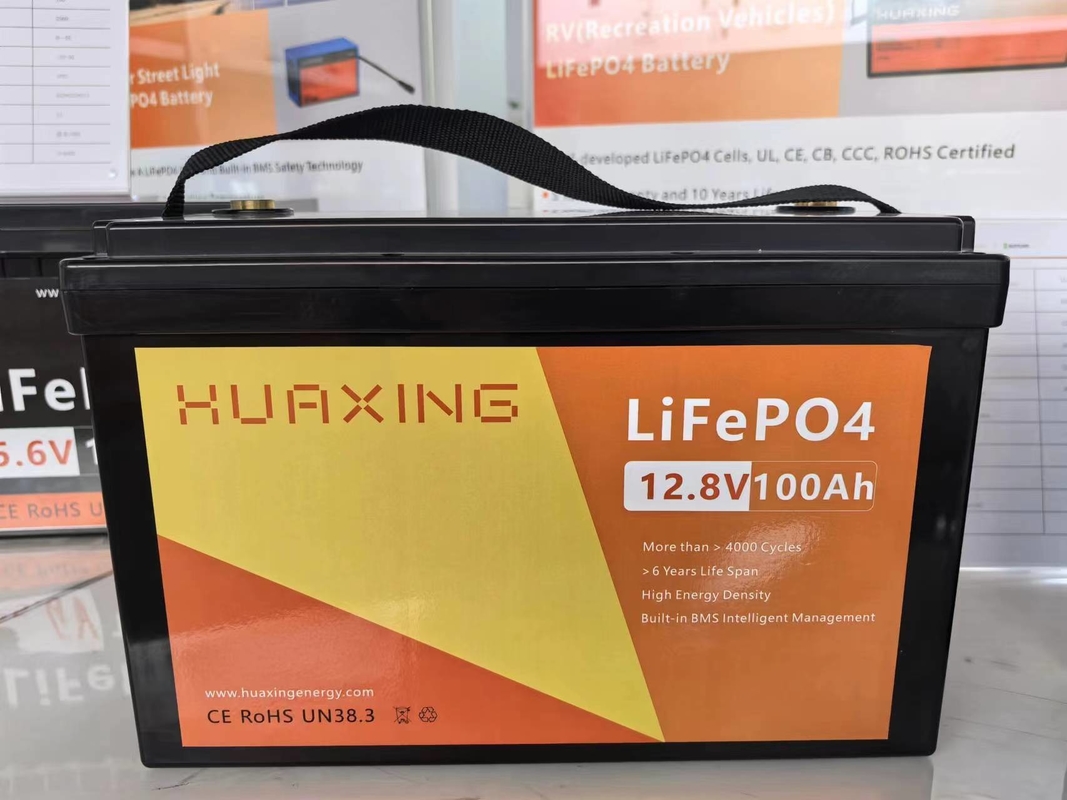

12V 50Ah - 300Ah Lead Acid Replacement LiFePO4 Batteries
Lead to lithium battery, that is, the original use of lead-acid battery equipment (such as electric vehicles, motorcycles, energy storage systems, etc.) in the process of replacing the battery with lithium battery. The use of lead to lithium batteries can reduce the overall operating costs of equipment and improve energy efficiency.
Product features:
1. High energy density, smaller size, easier to use
2. Strong durability, long service life, charge and discharge cycles more than 4000 times
3. Good charging and discharging performance, support fast charging of equipment
4. Operating temperature -20-60°C ,Strong adaptability to high and low temperatures
5. Using self-developed battery and BMS, high safety performance
High performance parameter
| Model | HX-LTL-12.8/50 | HX-LTL-12.8/100 | HX-LTL-12.8/150 | HX-LTL-12.8/200 | HX-LTL-12.8/300 |
| Parameter | 12.8V50Ah | 12.8V100Ah | 12.8V150Ah | 12.8V200Ah | 12.8V300Ah |
| Cell Technology | LFP(LifePO4) | LFP(LifePO4) | LFP(LifePO4) | LFP(LifePO4) | LFP(LifePO4) |
| Cell Type | Prismatic Cell | Prismatic Cell | Prismatic Cell | Prismatic Cell | Prismatic Cell |
| Configuration | 4S1P | 4S1P | 4S1P | 4S2P | 4S1P |
| Rated Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Rated Capacity | 50Ah | 100Ah | 150Ah | 200Ah | 300Ah |
| Energy | 640Wh | 1280Wh | 1920Wh | 2560Wh | 3840Wh |
| Max. Continuous Operating Current | 50Ah | 100Ah | 150Ah | 200Ah | 300Ah |
| Max. Peak Current(30s) | 100A | 200A | 300A | 400A | 400A |
| Operating Temperature | -20～60°C (-4～140°F) | -20～60°C (-4～140°F) | -20～60°C (-4～140°F) | -20～60°C (-4～140°F) | -20～60°C (-4～140°F) |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Dimension (W*D*H) |
229x138x208mm (12x6.6x8.2 inch) |
307x168x208mm (12x6.6x8.2 inch) |
483x170x240mm (12x6.6x8.2 inch) |
532x207x215mm (19x6.7x9.5 inch) |
522x240x218mm (20.9x8.1x8.5 inch) |
| Weight | 6.6kg | 10.5kg | 15kg | 19.6kg | 26.6kg |
| Casing | ABS | ABS | ABS | ABS | ABS |
| Cycle Life | 4000times | 4000times | 4000times | 4000times | 4000times |
| Certificates | CE/UE38.3 | CE/UN38.3 | CE/UN38.3 | CE/UN38.3 | CE/UN38.3 |
Application scenario
Lead to lithium batteries are widely used in RV, electric toy car, lawn mower, fish finder, battery car, ship, outdoor power supply and so on.
