Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX48100T
Payment & Shipping Terms
Minimum Order Quantity: 5
Price: Negotiation
Packaging Details: Carton
Delivery Time: 25day
Payment Terms: T/T
Supply Ability: 50 pks per day
Nominal Voltage: |
48V |
Nominal Capacity: |
100Ah |
Battery Combination: |
15S18P |
Nominal Energy Capacity: |
5KWh |
Max. Charge Current: |
50A |
Charge Time: |
2-5 Hours |
Max. Continuous Discharge Current: |
50A |
Peak Discharge Current: |
100A |
Total Weight: |
55KG |
Dimensions(L*W*H): |
482.6*420.0*221.45mm |
Nominal Voltage: |
48V |
Nominal Capacity: |
100Ah |
Battery Combination: |
15S18P |
Nominal Energy Capacity: |
5KWh |
Max. Charge Current: |
50A |
Charge Time: |
2-5 Hours |
Max. Continuous Discharge Current: |
50A |
Peak Discharge Current: |
100A |
Total Weight: |
55KG |
Dimensions(L*W*H): |
482.6*420.0*221.45mm |

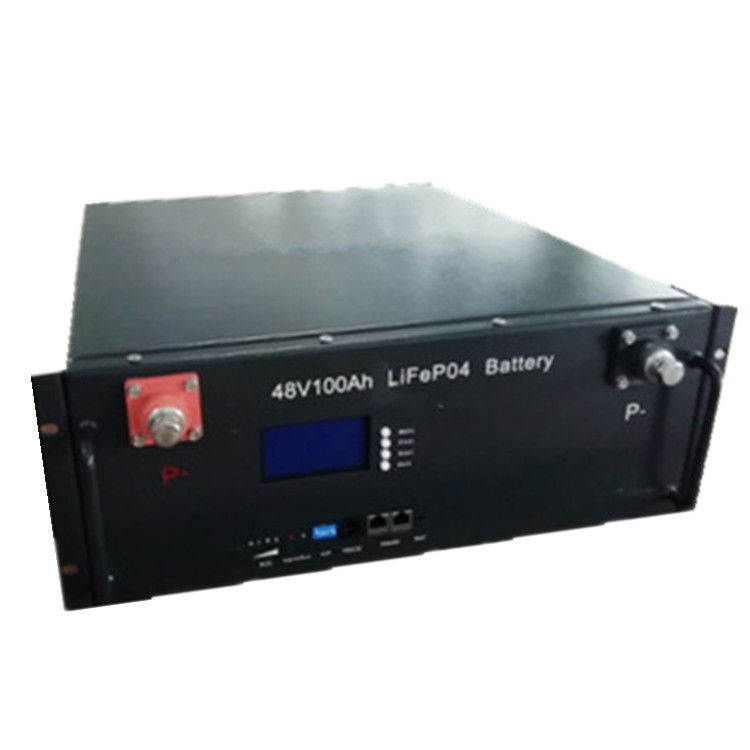

Telecom Lithium Battery 48V 100Ah 5KWh Lifepo4 battery with RS232/RS485
Description and Model
Battery Classification: LiFePO4
Battery Type: 48V100Ah(Telecom)
Basic specification:
| Item | Content | Criterion |
| Charge and Discharge Port | Shared | |
| Communication | RS232/RS485 | |
| Parallel Connection | 15PCS | |
| Serial Connection | Not allowed | |
| Normal Current | Charge Current | ≤50A |
| Discharge Current | ≤50A | |
| Over charge Protection | Over charge detection voltage | 3.75±0.05V |
| Over charge detection delay time | ~1000mS | |
| Over charge release voltage | 3.55±0.05V | |
| Over charge release condition | Cut off charger | |
| Maximum charge voltage | 3.65±0.05V | |
| Over discharge protection | Over discharge detection voltage | 2.20V±0.10V |
| Over discharge detection delay time | 200ms | |
| Over discharge release voltage | 2.4V±0.10V | |
| Discharge over current protection | Discharge over current detection current | 100A |
| Discharge over current detection delay time | ~100±50ms | |
| Discharge over current release condition | Cut load | |
| Short circuit protection | YES | |
Inner Cell performances:
HQ Office: Shenzhen Huaxing New Energy Co., Ltd.
Factory: Hunan Huaxing New Energy Co., Ltd.
Production:
Certifications:
About us:
Since its foundation, we have been insisting on the tenet of technical innovation, management
innovation and customer orientation and devote itself to becoming an export-oriented leading
enterprise of Lithium ion battery industry in China. We possesses an excellent technical team
who in lifepo4 battery industry. Our battery is of high safety, high power, long cycle life and
strong environmental adaptability friendly and are widely recognized on markets. Our battery
are used in many fields, such as power supply of electric vehicles, energy storage, security and
defense, medical devices, industrial automation, etc., providing customers with perfect product
application and technical proposals.
Cell packaging:
Battery packaging:
