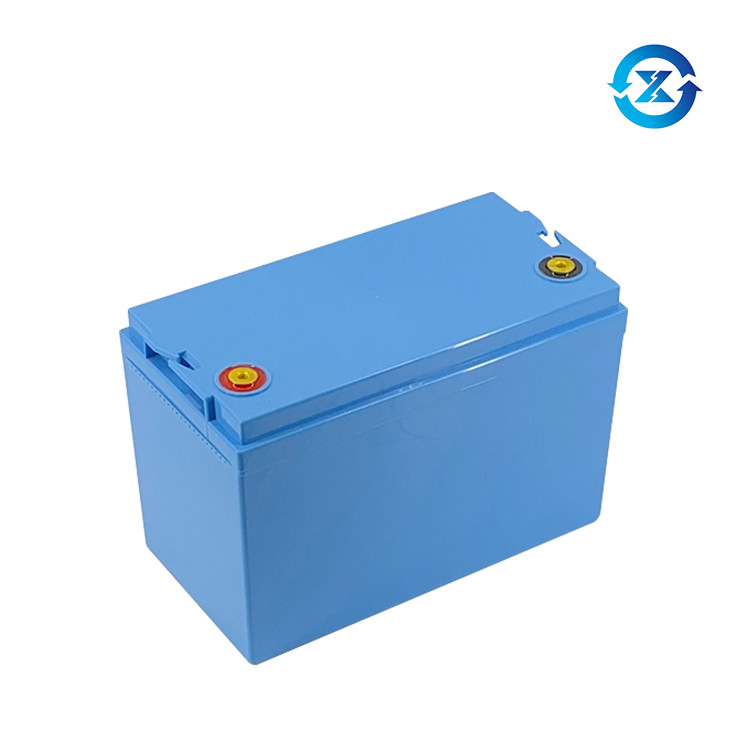

Short Circuit Protection 5S 50Ah 24V LiFePO4 Batteries

Product Details

Place of Origin: China

Brand Name: Huaxing

Certification: CE

Model Number: HX2450

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: US$270-320 per pks

Packaging Details: 1 pks per UN carton

Delivery Time: 20-25 days

Supply Ability: 100 pks per day

Get Best Price
Product Details
Highlight:

50Ah 24V LiFePO4 Batteries

,

5S 24V LiFePO4 Batteries

,

50Ah Lithium Ion Battery

Material:
LiFePo4/Graphite
Nominal Voltage:
25.6V
Nominal Capacity:
50Ah
Max Constant Current:
50A
Max Charge Voltage:
29.2V
Cut Off Voltage:
20V
Plastic Case:
328±1*171±1*215±1mm
Weight:
13Kg
Cycles Life:
2000 Cycles
Warranty:
2 Years
Material:
LiFePo4/Graphite
Nominal Voltage:
25.6V
Nominal Capacity:
50Ah
Max Constant Current:
50A
Max Charge Voltage:
29.2V
Cut Off Voltage:
20V
Plastic Case:
328±1*171±1*215±1mm
Weight:
13Kg
Cycles Life:
2000 Cycles
Warranty:
2 Years
Product Description

Safety Cylindrical LFP Deep Cycle Lifepo4 24v 50ah Lithium Ion Battery




24V50ah Lithium Ion Batteries specification



 No.

 Item

 General Parameter

 1

 Model

 HX2450

 2

 Standard Capacity

 50AH

 3

 Rated Voltage

 25.6V

 4

 Max Charge Voltage

 29.2V

 5

 Discharge Cut Off Voltage

 20V

 6

 Standard Charge Current

 25A

 7

 Max Continuous Discharge Current

 50A

 8

 Peak Instant Discharge Current

 100A with 5S

 9

 Dimension(ABS)

 328±1*171±1*215±1mm

10

 Total weight(Approx.)

 13kg

11

 Operate Temperature

 -20°C~60°C

12

 Built-in BMS

 YES

13

 Cycle Times

 2000 cycles




24V50ah LiFePo4 Batteries BMS specification



Item

Content

Criterion

Charge and Discharge Port

Shared

Communication

None

Parallel Connection

None

Serial Connection

Max. 2pcs

Normal Current

Charge Current

≤50A

Discharge Current

≤50A

Over charge Protection

Over charge detection voltage

3.75±0.05V

 Over charge detection delay time

~1000mS

Over charge release voltage

3.55±0.05V

Over charge release condition

Cut off charger

Maximum charge voltage

3.65±0.05V

Over discharge protection

Over discharge detection voltage

2.20V±0.10V

Over discharge detection delay time

200ms

Over discharge release voltage

2.4V±0.10V

Discharge over current protection

Discharge over current detection current

150±30A

Discharge over current detection delay time

~100±50ms

Discharge over current release condition

Cut load

Short circuit protection

YES




Huaxing Best selling products

1)32700 3.2V 6AH LFP cell.

2)12V 50&100&200&300AH with ABS package to replace tranditional SLA battery.

3)48V50&100AH with communication BMS for telecom tower.

4)5KWh and 10KWH lithium battery pack for home energy storage system.

5)6.4V&9.6V&12V&24V 6-30AH with soft pvc package battery pack for emergency lighting,LED light,flashing light,solar street lighting,and others.

6)51.2V 12&18&55Ah,64V20&24Ah,76.8V 24&36Ah for e-bike,motorcycle and other low speed vehicles.


Main Applications:

  • RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
  • Telecommunication, back-up power supply, UPS
  • Storage energy for solar system, solar street, home energy storage and so on

Short Circuit Protection 5S 50Ah 24V LiFePO4 Batteries 0




24V Stanadrd LiFePo4 battery



24V LiFePO4 Battery Pack
Battery Type 24V6Ah 24V10Ah 24V20Ah 24V30Ah 24V50Ah 24V100Ah 24V130AH
Cell Type 3.2V/6.0Ah 3.2V/5.5Ah 3.2V/5.5Ah 3.2V/5.5Ah 3.2V/5.5Ah 3.2V/5.5Ah 3.2V/6.0Ah
Nominal Voltage(V) 12.8
Nominal Capacity (Ah) 6 10 20 30 50 100 130
Charge Voltage (V) 14.6
Charge Current (A) ≤6 ≤10 ≤20 ≤30 ≤50 ≤100 ≤100
Discharge Current (A) ≤6 ≤10 ≤20 ≤30 ≤50 ≤100 ≤100
Weight(kg) 1.5 3 7.5 11.5 14 29 40
Dimensions(L*W*H)(mm) 151*98*98 181*76*166 197*165*170 208*169*260 324*172*214 520*265*220 520*265*220
Operation Temperature -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃
Housing Material ABS
Protection Functions short circuit, over charge, over discharge, over current, over temperature




Package Information:



DESCRIPTION

QUANTITY/CTN

PACKAGE

GROSS WEIGHT

NET WEIGHT

DIMS(m³)

(PCS)

CARTONS SIZE(MM)

(KG)

(KG)

24V50AH LiFePo4 Battery

1

460*250*220

14

13

0.03



20ft container can load 600 pks 24V50Ah lithium battery pack

40ft container can load 1200 pks 24V50Ah lithium battery pack







---_02


The comparison between LFP and NCM

Items LiFePO4 Battery LiNiCoMnO2 Battery(NCM)
Nominal Voltage 3.2V 3.7V
Discharging Rate

≤10C



≤5C
Safety Much more safe at high temperature, or in an accident, no explosion, no fire, successfully pass the safety test Less safety performance at high temperature, or in an accident. difficult to pass the safety test, such as nail penetration test
Working Temperature -20-70℃. -20-55℃.
Cycle Performance

More than 4000 cycles at 1C, 80%DOD.

The EOL is still 100% after 500 cycles

About 1500 cycles at 1C, 80%DOD.

The EOL is below 98% after 500 cycles

Stability The Olivine type crystal structure is the most stable one, and not decompose in high temperature The Layer type crystal structure is less stable, easy to decompose and collapse
Material Does not contain any heavy metals and rare metals, raw material can be easily obtained Co is rare metal, and very limit resource on the globe
