Built In BMS 80Ah 48V Rechargeable Battery For Off Grid System

Basic Information
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX4880A
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per month
Voltage: 51.2V Capacity: 80Ah
Max Charge Current:: 80A Max Discharge Current:: 80A
Peak Current:: 100A OEM: YES
ODM: YES Life Cycles: Over 2000times
Weight: 40kg Application: UPS,solar System,golf Car
High Light:

80Ah 48V Rechargeable Battery


Built In BMS 48V Rechargeable Battery


80Ah 48V Lifepo4 Battery Pack

Rechargeable 48V LiFePO4 Battery 80Ah Customized Lithium Ion Battery For Off Grid System


1.This 48V80Ah LFP battery system has built-in BMS and stainless steel box painted in

black or white. 1. Maintenance free. Modular design for easy installation and capacity expansion.

2. Long cycle life (more than 3000 cycles at 80% DOD)

3. Bulit-in smart BMS with multiple protection and communication functions

4. Wide working temperature range and high reliability

5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.

6. Compatible with various charge controllers and inverters

7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

48V80AH LiFePo4 lithium battery pack specification

Battery type 48V50Ah Lifepo4 battery
1 Nominal Voltage(V): 51.2V
2 Voltage Range(V): 40~58.4
3 Nominal Capacity(Ah): 80
4 Max. Charge Current(A): 80
5 Max. Continuous Discharge Current(A): 80
6 Peak Discharge Current(A): 100
7 Cycle Life(Times): Over 2000times
8 Charge way: CC/CV
9 Dimension(L*W*H): customize
10 Working Temperature: Charge: 0℃~45℃
Discharge: -20℃~60℃
Storage: -20℃~45℃



Main Application
cart, forklift, RV and so on.

Our life cycle tests for our lifepo4 battery:

Built In BMS 80Ah 48V Rechargeable Battery For Off Grid System 1


Related lifepo4 battery

Built In BMS 80Ah 48V Rechargeable Battery For Off Grid System 2

Built In BMS 80Ah 48V Rechargeable Battery For Off Grid System 3

Huaxing New Energy
Built In BMS 80Ah 48V Rechargeable Battery For Off Grid System 4

About us:
HUAXING NEW ENERGY is a group company.

The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its subsidiary companies

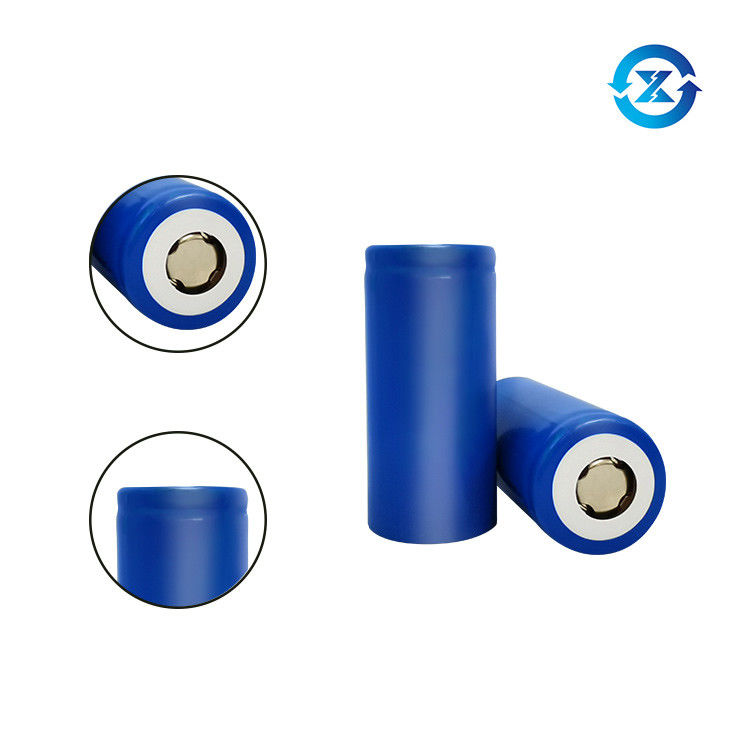

including Hunan Huaxing New Energy Technology Co., Ltd which produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4 battery pack.
We has over 50,000 m2 CELL and PACK workshop. With an annual productivity of 3GWh
cell equipment and a technical R&D team, its annual sales volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and ISO45001:2018.
Our 32700 lifepo4 cell passes: UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional customized serive, Competitive
price, and Great sales team.



Our Factory Environment: Welcome to visit us!

Built In BMS 80Ah 48V Rechargeable Battery For Off Grid System 5

Built In BMS 80Ah 48V Rechargeable Battery For Off Grid System 6

The comparison between LFP and SLA

  LFP battery SLA battery Remarks
Weight high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight low energy density: 32-37Wh/kg LFP battery is about 70% size and weight of SLA battery, lower the total weight of application
Cycle life 4000 cycles and more 400-500 cycles LFP can be used for almost 10 years; SLA can only last for max. 2 years
Capacity Utilisation 80 to 100% 50 to 60% Most lead acid batteries do not recommend more than 50% depth of discharge
Efficiency allows for the same amp hours both in and out voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency
Voltage maintain voltage throughout the entire discharge cycle drops consistently throughout the discharge cycle. A stable droping voltage allows for greater and longer-lasting efficiency of electrical components
Cost Up to 8 times the cycle life compared to equivalent SLA A low upfront cost, but a high cost of ownership in long run Lower total cost of ownership
Environmental effect clean technology, safer and more environment friendly contains the heavy metal - lead
