Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: MSDS
Model Number: HX240w
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: 205*84*170mm
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 500pcs per day
Material: |
LiFePO4/Grahpite |
Weight (including Packing): |
2.8kg |
Product Size: |
205*84*170mm |
Working Temperature: |
-10～65℃ |
Battery: |
12V18Ah |
Max Voltage Of Battery: |
14.6V |
Lower Voltage Of Battery: |
10V |
Material: |
LiFePO4/Grahpite |
Weight (including Packing): |
2.8kg |
Product Size: |
205*84*170mm |
Working Temperature: |
-10～65℃ |
Battery: |
12V18Ah |
Max Voltage Of Battery: |
14.6V |
Lower Voltage Of Battery: |
10V |
Product description

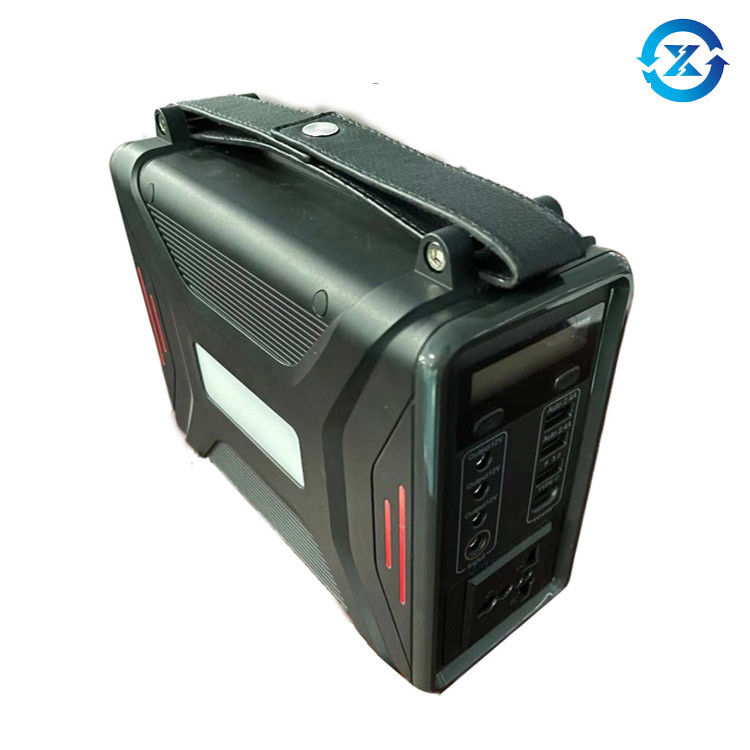

HX-240w portable energy storage power supply, with lithium battery as the core,
adopts high frequency inverter technology, integrates the battery and inverter part into
portable metal cabinet, and creates a common energy storage product for outdoor home.
It outputs ac220v/50hz and outputs usb+dc12v power supply.
Product performance parameters:
Inverter output part
|
Input undervoltage protection |
9V±0.5V |
|
No load consumes electrical current |
≤0.6A |
|
The output voltage |
220V/±10% |
|
The output frequency |
50HZ/60HZ±2HZ |
|
Output rating |
240W |
|
Full load efficiency |
≥89% |
|
Output overload protection |
240W±20W |
DC1 output part
|
Battery undervoltage protection |
9V±0.5V |
|
No load consumes electrical current |
≤0.09A |
|
output voltage |
12V(9V-12.6V) |
|
Output rated current |
8A±5% |
|
Output overcurrent protection |
8.2A±0.5A |
|
Full load efficiency |
≥95% |
|
Output short circuit protection |
There are |
|
Output voltage |
12V±5% |
|
Output rated current |
3.2A±0.5A |
|
Full load efficiency |
≥85% |
|
Output short circuit protection |
There are |
DC2 output part
|
Battery undervoltage protection |
9V±0.5V |
|
No load consumes electrical current |
≤0.05A |
|
The output voltage |
12V*3(9V-12.6V) |
|
Output rated current |
4A+4A+4A±5% |
|
Output overcurrent protection |
3*4.2A±0.5A |
|
Full load efficiency |
≥95% |
|
Output short circuit protection |
There are |
USB output part
|
Battery undervoltage protection |
9V±0.5V |
|
No load consumes electrical current |
≤0.05A |
|
The output voltage |
5V±5% |
|
Output rated current |
1A/2.1A |
|
Output overcurrent protection |
3.5-4.5A |
|
Full load efficiency |
≥88% |
|
Output short circuit protection |
There are |
USB fast charging output part
|
Battery undervoltage protection |
8.8±0.5V |
|
No load consumes electrical current |
≤0.09mA |
|
The output voltage |
5V/9V±5% |
|
Output rated current |
2.4A/1.5A |
|
Output overcurrent protection |
3A-4A |
|
Full load efficiency |
≥88% |
|
Output short circuit protection |
There are |
DC charging part
|
Input rated voltage |
12V~24V |
|
Input current range |
5.5A±5% |
|
Battery charge current |
5A±5% |
|
Battery pack charging cut-off voltage |
12.6V±5% |
Solar charging part
|
Input rated voltage |
20V |
|
Input current range |
4A±5% |
|
Battery charge current |
5A±5% |
|
Battery pack charging cut-off voltage |
12.6V±5% |
AC charging part
|
Input rated voltage |
AC100V-240V 50HZ/60HZ |
|
Battery charge current |
6A±5% |
|
Battery pack charging cut-off voltage |
12.6V±5% |
Package Information:
| DESCRIPTION | QUANTITY/CTN |
product size |
NET WEIGHT | ||
| (PCS) | (MM) | (KG) | |||
| 500W portable energy storage power supply | 1 |
205*84*170mm |
2.8KG |
|
