Shenzhen Huaxing New Energy Technology Co.,Ltd joan.deng@huaxingenergy.com 86--0755-89458220
Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: MSDS
Model Number: HX3KW/10KWH
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Wood case package
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 50 pks per day
Material: |
LiFePO4/Grahpite |
Weight (including Packing): |
211kg |
Battery Pack: |
51.2V 200Ah |
Min Energy Capacity: |
≥9.2kWh |
Continuous Charge Current: |
50A |
Continuous Discharge Current: |
100A |
IP: |
IP65 |
Inverter: |
3kW |
Material: |
LiFePO4/Grahpite |
Weight (including Packing): |
211kg |
Battery Pack: |
51.2V 200Ah |
Min Energy Capacity: |
≥9.2kWh |
Continuous Charge Current: |
50A |
Continuous Discharge Current: |
100A |
IP: |
IP65 |
Inverter: |
3kW |

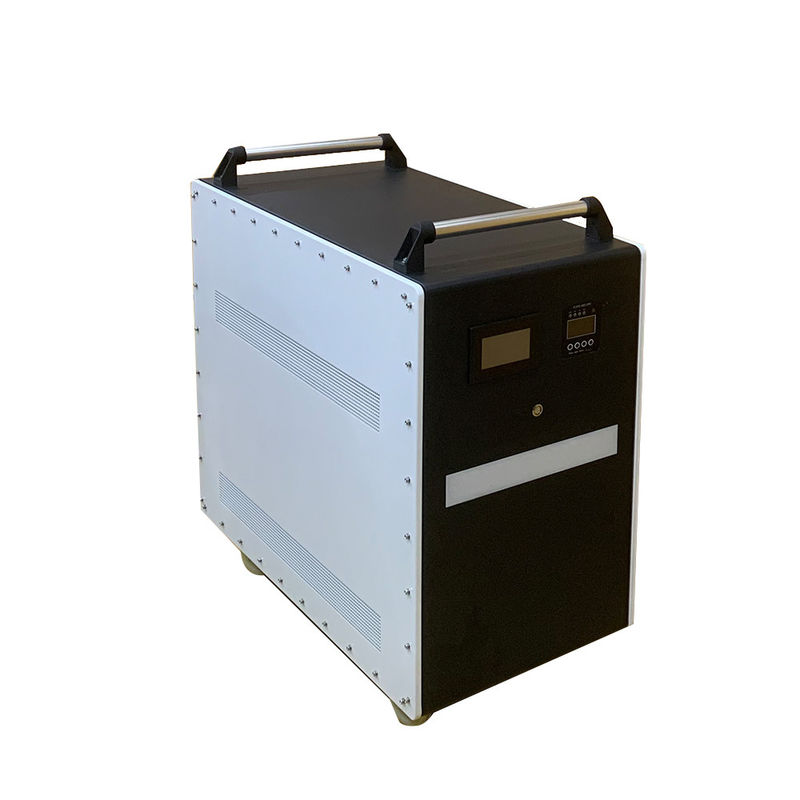

Huaxing 3KW/10KWH portable station Technical Parameters
| Battery specification | Name | Cell | Battery pack |
| Parameters | 3.2V 6Ah | 51.2V 200Ah | |
| Quantity | 560pcs | 1pcs | |
| System capacity | 10kWh | ||
| The system efficiency | 85%±5% | ||
| The system DOD | 80%DOD | ||
| Min Energy capacity | ≥9.2kWh | ||
| Life cycles | 25℃±2℃,0.3Ccharge and discharge,80%DOD,More than 4000times,(Capacity remain over 80%) | ||
| Continuous charge current(A) | 50A | ||
| Continuous discharge current(A) | 100A | ||
| Charge and discharge rate at full power | 0.3 C | ||
| Battery energy | 25°C 10kWh (100% DOD @ 1C rate) | ||
| - 20°C 9.2 kWh(100% DOD @ 1C rate) | |||
| Storage Temperature | Less 45°C suggested | ||
| Self discharge | 25°C,Per month≤5% | ||
| IP | IP65 | ||
| Inverter configuration | |||
| Type | (/)3kW | ||
| Parameters | Continuous power:(KW)3 Peak power:(KW)6 |
| Nominal Voltage:(Vdc)51.2 | |
| Charge current:(A)0~30 | |
| Cut off voltage:(V)58.4 | |
| Max discharge current:(A)60 | |
| Grid Voltage range:170-265Vac Max input current:35A Frequency:45-65Hz | |
|
The voltage from Mains electricity low voltage to battery mode:165Vac±5％ The recovery voltage of Mains electricity mode low voltage: 75Vac±5％ The voltage from Mains electricity high voltage to battery mode:265Vac±5％ The recovery voltage of Mains electricity mode high voltage: 55Vac±5％ |
|
|
Inverter voltage range:230Vac±5%(Inverter mode) Frequency:50/60Hz±1%(Inverter mode) Output waveform: pure sine wave Efficiency: >90% (88% resistive load) Protection function: overvoltage and undervoltage protection, overload protection, short circuit protection, over temperature protection. |
Operation mode description::
Mains electricity mode: Priority for Mains electricity , the device supplies power to the load through
the Mains electricity bypass Voltage Stabilizing and at the same time charges the battery. When the Mains electricity cut off, the device automatically switches the battery to supply power to the load.
Energy-saving mode: Automatically detect the load. When the load is more than
5% of the nominal power, the device starts to work; when it detects that there is no load,
the device automatically returns to the search mode, enters the sleep state, and turns off the output.
Battery mode: Prioritize the battery power supply. When the battery reaches a low voltage,
it will automatically switch to Mains electricity. After charge enough, the device will automatically switch to storage for battery.
Our safety tests for our lifepo4 battery:
Our life cycle tests for our lifepo4 battery:
10KWH power bank detailed information
About us:
HUAXING NEW ENERGY is a group company.
Our Factory Environment: Welcome to visit us!
