Shenzhen Huaxing New Energy Technology Co.,Ltd joan.deng@huaxingenergy.com 86--0755-89458220
Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/ and CB/UN38.3 and MSDS.
Model Number: HX32700
Payment & Shipping Terms
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per month
Voltage: |
3.2V |
Capacity: |
6Ah |
Max Charge Current:: |
1C |
Max Discharge Current:: |
3C |
Peak Current:: |
10C |
Weight:: |
145g |
Dimension:: |
32.2±0.3mm*70.5﹢0.4mm/﹣0.3mm |
Life Cycles: |
Over 2000times |
Voltage: |
3.2V |
Capacity: |
6Ah |
Max Charge Current:: |
1C |
Max Discharge Current:: |
3C |
Peak Current:: |
10C |
Weight:: |
145g |
Dimension:: |
32.2±0.3mm*70.5﹢0.4mm/﹣0.3mm |
Life Cycles: |
Over 2000times |

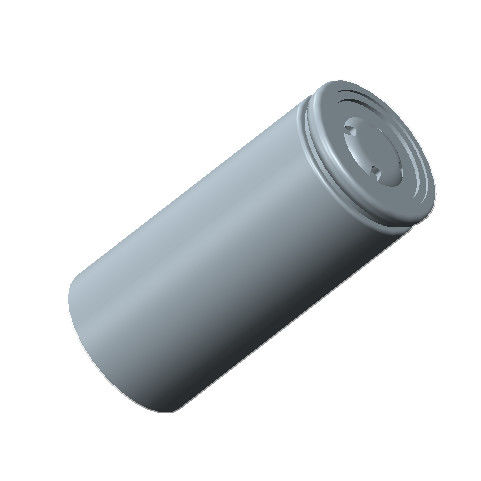

Main Feature of this 32700 battery:
[ECONIMICAL] 32700 lithium ion phosphate cells with 6Ah high capacity,but cost is lower than normal 26650 cells.
[LIGHT WEIGHT] Weight is only 145g.
[RELIABEL GRADE A CELLS] Performance is good, very safe but price is more competitive.
[LONG CYCLE LIFE] This battery is with 2000 time charge and discharge cycle life, after that,
capacity left is still 80% of original value, self discharge rate is much lower than li-ion battery.
[CUSTOMIZED &SAVE TIME] Battery cells, size, capacity, voltage, connector…
most parameters can be changed according to your request.
You don’t need to take too much time to search an exist model.
* Low self-discharge
* Double safety protection
* Sturdy and pressure resistanct steel envelope
* Excellent high and low temperature performance
* With outstanding high level of vibrations and shocks
| Battery type | 3.2V 6Ah Lifepo4 battery | |
| 1 | Nominal Voltage(V): | 3.2V |
| 2 | Voltage Range(V): | 2.5~3.65V |
| 3 | Nominal Capacity(Ah): | 6 |
| 4 | Max. Charge Current(A): | 6 |
| 5 | Max. Continuous Discharge Current(A): | 18 |
| 6 | Peak Discharge Current(A): | 60 |
| 7 | Cycle Life(Times): | Over 2000times |
| 8 | Charge way: | CC/CV |
| 9 | Dimension(L*W*H): |
32.2±0.3mm*70.5﹢0.4mm/﹣0.3mm
|
| 10 | Working Temperature: | Charge: 0℃～45℃ Discharge: -20℃～60℃ Storage: -20℃～45℃ |
LiFePO4 Cylindrical Cells 3.2V LiFePO4 characterizes with high rate discharging,
high temperature, long cycle life and safety. A leading choice for high power applications
such as on EV and Engergy Storage.
More, pls feel free to contact us.
Our safety tests for our lifepo4 battery:
Our life cycle tests for our lifepo4 battery:
Related lifepo4 battery
More information about our common lifepo4 battery types or
customized types,
Pls free free to contact us directly.
