Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: MSDS
Model Number: HX2424
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: 2 pks per UN carton UN carton 460*250*220mm
Delivery Time: 20-25 days
Supply Ability: 100 pks per day
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
24Ah |
Max Constant Current: |
24A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Plastic Case: |
197±1*165±1*170±1mm |
Weight: |
6.5Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Applications: |
Military Back Up,solar Street Light,UPS,AGV |
Brand: |
Huaxing |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
24Ah |
Max Constant Current: |
24A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Plastic Case: |
197±1*165±1*170±1mm |
Weight: |
6.5Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Applications: |
Military Back Up,solar Street Light,UPS,AGV |
Brand: |
Huaxing |

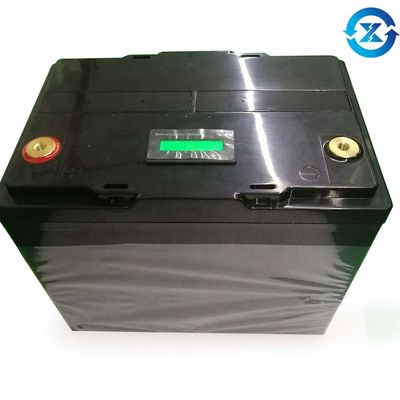

Long Life Span 24V 24AH Lithium LiFePO4 Battery Pack SLA Battery Replacement
A safer substitutefor an original lead-acid battery
Products Features
Reliable,power lithium batteries
Applications:
Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Features:
* Long service life.
* Low self-discharge.
* Environment friendly.
* Good safety performance.
* Maintenance-free operation.
*Broad operating temperature range.
24V100ah LiFePo4 Batteries specification
| Battery type | 25.6V 40Ah Lifepo4 battery | |
| 1 | Nominal Voltage(V): | 25.6V |
| 2 | Voltage Range(V): | 20~29.2 |
| 3 | Nominal Capacity(Ah): | 40 |
| 4 | Max. Charge Current(A): | 1C |
| 5 | Max. Continuous Discharge Current(A): | 1C |
| 6 | Peak Discharge Current(A): | 2C |
| 7 | Cycle Life(Times): | Over 2000times |
| 8 | Charge way: | CC/CV |
| 9 | Dimension(L*W*H): | Customized |
| 10 | Working Temperature: | Charge: 0℃～45℃ Discharge: -20℃～60℃ Storage: -20℃～45℃ |
Main Applications:
24V Stanadrd LiFePo4 battery
| 24V LiFePO4 Battery Pack | |||||||
| Battery Type | 24V6Ah | 24V10Ah | 24V20Ah | 24V30Ah | 24V50Ah | 24V100Ah | 24V130AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 | ||||||
| Nominal Capacity (Ah) | 6 | 10 | 20 | 30 | 50 | 100 | 130 |
| Charge Voltage (V) | 14.6 | ||||||
| Charge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Discharge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS | ||||||
| Protection Functions | short circuit, over charge, over discharge, over current, over temperature | ||||||
Package Information:
|
DESCRIPTION |
QUANTITY/CTN |
PACKAGE |
GROSS WEIGHT |
NET WEIGHT |
DIMS(m³) |
|
(PCS) |
CARTONS SIZE(MM) |
(KG) |
(KG) |
||
|
24V40AH LiFePo4 Battery |
1 |
460*250*220 |
14 |
13 |
0.03 |
20ft container can load 600 pks 24V40Ah lithium battery pack
40ft container can load 1200 pks 24V40Ah lithium battery pack
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual production of 3GWh cell equipment and at technical R&D team.
The comparison between SLA and LFP
| LFP battery | SLA battery | Remarks | |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2 years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead |
