Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: CE,IEC62133,UN38.3,MSDS
Model Number: HX2424
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: 4 pks per UN carton
Delivery Time: 20-25 days
Supply Ability: 100 pks per day
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
24Ah |
Max Constant Charge Current: |
10A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Soft PVC: |
295x270x35mm |
Weight: |
4.5kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Applications: |
Cart,trolley,Military Back Up,solar Street Light,UPS,AGV |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
24Ah |
Max Constant Charge Current: |
10A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Soft PVC: |
295x270x35mm |
Weight: |
4.5kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Applications: |
Cart,trolley,Military Back Up,solar Street Light,UPS,AGV |
Products Features
Reliable,power lithium batteries
Wide applications:Military back up/RV/Motorhome,Golf cart,Marine,Solar system
Light weight
Environmental friendly

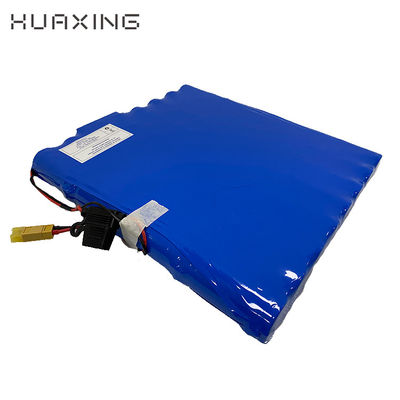

25.6V 24Ah Lithium LiFePo4 Batteries specification
|
No. |
Item |
General Parameter |
|
1 |
Model |
HX2424 |
|
2 |
Standard Capacity |
24AH |
|
3 |
Rated Voltage |
25.6V |
|
4 |
Max Charge Voltage |
29.2V |
|
5 |
Discharge Cut Off Voltage |
20V |
|
6 |
Standard Charge Current |
10A |
|
7 |
Max Continuous Discharge Current |
20A |
|
8 |
Peak Instant Discharge Current |
40A with 5S |
|
9 |
Dimension(Soft pvc) |
295x270x35mm |
|
10 |
Total weight(Approx.) |
4.5kg |
|
11 |
Operate Temperature |
-20°C~60°C |
|
12 |
Built-in BMS |
YES |
|
13 |
Cycle Times |
2000 cycles |
Main Applications:
24V Stanadrd LiFePo4 battery
| 24V LiFePO4 Battery Pack | |||||||
| Battery Type | 24V6Ah | 24V10Ah | 24V20Ah | 24V30Ah | 24V50Ah | 24V100Ah | 24V130AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 | ||||||
| Nominal Capacity (Ah) | 6 | 10 | 20 | 30 | 50 | 100 | 130 |
| Charge Voltage (V) | 14.6 | ||||||
| Charge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Discharge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS | ||||||
| Protection Functions | short circuit, over charge, over discharge, over current, over temperature | ||||||
Package Information:
|
DESCRIPTION |
QUANTITY/CTN |
PACKAGE |
GROSS WEIGHT |
NET WEIGHT |
DIMS(m³) |
|
(PCS) |
CARTONS SIZE(MM) |
(KG) |
(KG) |
||
|
24V24AH LiFePo4 Battery |
4 |
349*245*363 |
20 | 19 | 0.03 |
20ft container can load 960pks 24V24Ah lithium battery pack
40ft container can load 1920 pks 24V24Ah lithium battery pack
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual production of 3GWh cell equipment and at technical R&D team.
The comparison between SLA and LFP
| LFP battery | SLA battery | Remarks | |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2 years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead |
The usage notice of LiFePO4 Battery Pack
1. This is a rechargeable Lithium-Ion battery.
2. Use the proper charger to charge your battery.
3. Never leave batteries unattended while charging.
4. Do not short circuit.
5. May explode if damaged or disposed of in fire.
6. Ensure they are suitable for the device and/or Atomizer combination.
7. Do not use if damaged.
8. Do not overcharge.
9. Do not over-discharge.
10. Dispose of old or damaged batteries properly.
11. Contact us if you have any questions before purchasing this device.
12. This battery comes with a free case when ordered in Sets.
