| Place of Origin: | China |
|---|---|
| Brand Name: | Huaxing |
| Certification: | UL/BIS/PSE/IEC /CB/UN38.3 and MSDS |
| Model Number: | 32700 6Ah |
| Minimum Order Quantity: | 8000 |
| Packaging Details: | 10 pallets with 1.1M*1.1M *1.35M full fill with 20Gp |
| Delivery Time: | 7days |
| Supply Ability: | 1500000 |
| Model Number:: | 32700 | Battery Type:LiFePO4: | LiFePO4 |
|---|---|---|---|
| Nominal Capacity:: | 6000mah | Nominal Voltage:: | 3.2V |
| Cycle Life:: | 2000 Times | AC Impedance:: | ≤ 8 MΩ |
| High Light: | LiFePO4 Cylindrical Cells 2000 Times,IFR 32700 LiFePO4 Cylindrical Cells,stable 32700 Lithium Ion Battery |
||

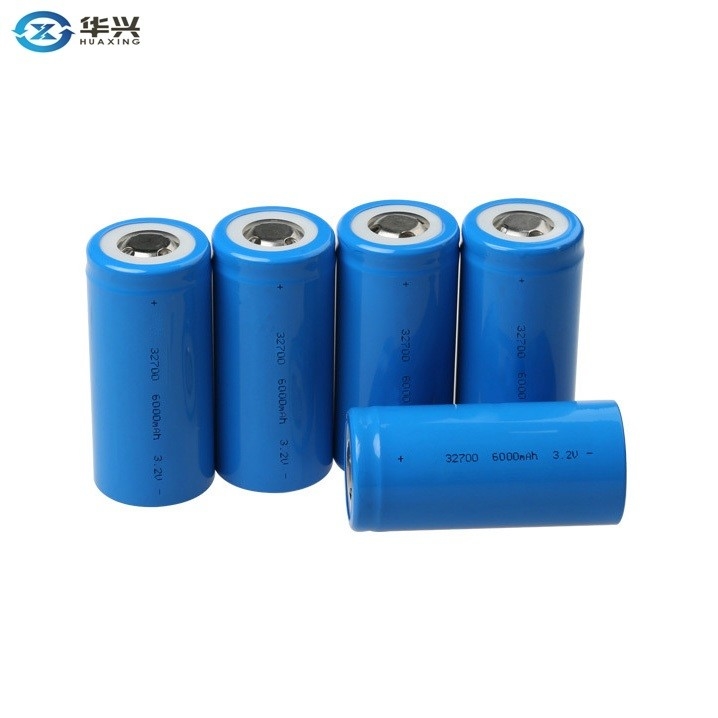

Wholesale Rechargeab Guaranteed Quality Original Le 3.2V Lithium Ion 32700 Li Ion Battery
Product advantage
Lead acid compatible - you can use 4 iron phosphates in series to replace a lead acid battery. You can use traditional 14.6 volt lead acid chargers on this setup, as it comes out to a perfect 3.65 volts per cell.
MUCH longer life. Li-Ion has a life cycle of 400 cycles. LiFePO4 is 2000. That is a no-kidding serious difference.
SAFER - iron phosphates are far less likely to blow up, catch fire, burn down your property - the chemistry is much more stable compared to LiCoMn. Powerful - iron phosphates can give you ridiculous power bursts, 10C no problem, that's why they are the only option for replacing lead acid for starter batteries.
|
Model
|
Vapcell IFR32700 6200mah
|
|
Size
|
32*70mm
|
|
Nominal voltage
|
3.20V
|
|
End-of-charge voltage
|
3.65V
|
|
End-of-discharge Voltage
|
2.00v
|
|
Typical Capacity
|
6200mAh (0.2C discharge)
|
|
Min capacity
|
6100mAh (0.2C discharge)
|
|
Weight
|
Max:150g
|
|
Internal resistance
|
Max:8mΩ (AC 1KHz)
|
|
Standard Charge
|
6000mA,CCCV 200mA cut-off
|
|
Quick Charge Current
|
30000mA
|
|
Max Continuous Discharge Current
|
30A
|
|
Max Pluse Discharge Current
|
55A for 5seconds
|
|
Cycle Life
|
1C discharge/ 70 % DOD, ≥2000 cycles
|
|
Operating Temperature
|
Charging, 0°C ~ 45°C
|
|
Discharging, -20°C~75°C
|
|
|
Storage Temperature
|
-5°C~35°C
|
|
Storage Humidity
|
≤75%RH
|
|
Appearance
|
Without scratch,distorion,contamination,
|
|
and leakage
|
|
|
Standard environmental condition
|
Temperature: 23±5°C
|
|
Humidity: 45-75%RH
|
|
|
Atmospheric Pressure :86-106KPA
|
Profile
Hunan Huaxing New Energy Technology Co.,Ltd.established on April 30,2019, is a hold.ing subsidiary of Shenzhen Huaxing New Energy Co.,Ltd. The company is mainly engaged inproduction,R&D and sales of materials,cellsand battery packs related to power and energystorage, self-management and agency for the import and export of new energy relatedcommodities and technologies.At present, the main products of the company,LiFeP04 cylin-drical lithium-ion batteries,are characterized by its high safety, high power, long cycle lifeand strong environment adaptability which have been widely applied in new energy fieldslike electric vehicles, energy storage stations,wind-based lighting,electric tools,low-speedelectric vehicles, two-wheel and three-wheel scooters, etc.
The Company possesses a senior technology research and development team in theindustry,over 50,000 m2 workshop and advanced equipment with an annual output of 3GWhbattery cells and PACK and applies strict quality standard systems. Our products can meet therequirements of safety and environmental protection certification, including PSE,UL,UN38.3,CB,ROHS and IEC, etc. At present, on the basis of meeting domestic demands, our products
have also been sold to overseas markets,like Europe,Southeast Asia,Japan,SouthKorea and so on. It is predicted that the sales amount will realize RMB one billion and theannual amount of tax payment will be nearly RMB one billion in 2020.
Since its establishment,the Company has taken promotion of new energy technolo-gy development as its mission,insisted on taking technological innovation,manage-ment innovation and customer first as its tenet,devoted itself to improving safety andquality of lithium batteries by improving research and development capacity and manu-facturing standard continuously and winning customers' supports and trusts by virtue ofinnovative development and struggling unremittingly for realizing the maximization ofcustomer values.
