Home > products > LiFePO4 Cylindrical Cells > Long Life 3000 Times 32700 Lithium Battery Lightweight For Home Storage

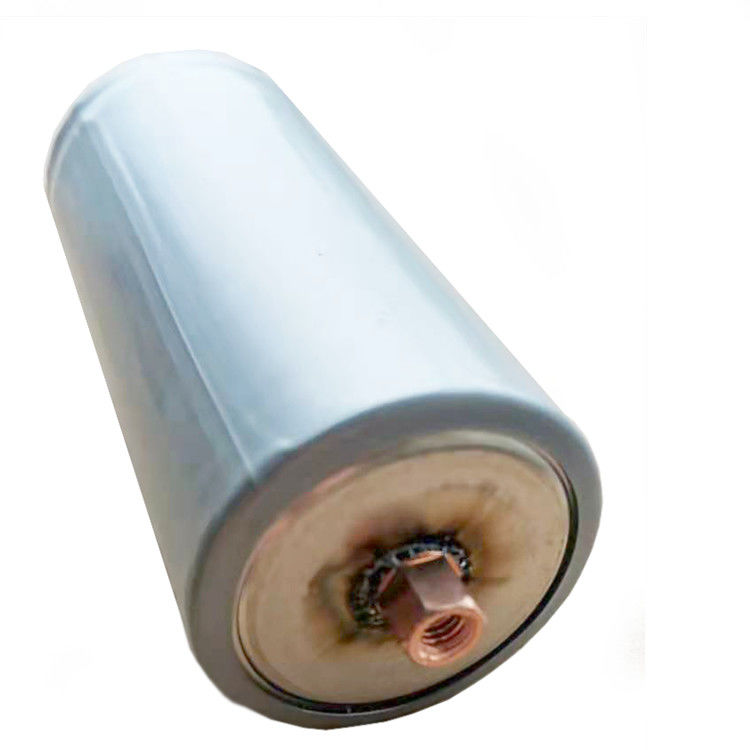

Long Life 3000 Times 32700 Lithium Battery Lightweight For Home Storage

Product Details

Place of Origin: China

Brand Name: Huaxing

Certification: CE UL PSE BIS RoHS UN38.3 MSDS

Model Number: 32700-3.2V6.0Ah

Payment & Shipping Terms

Minimum Order Quantity: 200

Price: $2.30

Packaging Details: carton 328*171*215mm

Delivery Time: 5-8 workdays

Payment Terms: L/C, D/P, T/T

Supply Ability: 100000 pcs per day

Get Best Price
Product Details
Highlight:

3000 Times 32700 Lithium Battery

,

Long Life 32700 lifepo4 battery cells

,

lightweight 32700 lifepo4 battery cells

Nominal Voltage:
3.2V
Voltage Range:
2-3.65V
Nominal Capacity:
6Ah
Minimum Capacity:
5.8Ah
AC Impedance:
≤8mΩ
Cell Size:
32.2x70.5mm
Weight:
140g
Cycle Life:
>3000 Times
Working Temperature:
Charge: 0℃~45℃ Discharge: -20℃~60℃
Charging Temperaturetion:
0~60 °C
Discharging Temperature:
-20~ 60°C
Nominal Voltage:
3.2V
Voltage Range:
2-3.65V
Nominal Capacity:
6Ah
Minimum Capacity:
5.8Ah
AC Impedance:
≤8mΩ
Cell Size:
32.2x70.5mm
Weight:
140g
Cycle Life:
>3000 Times
Working Temperature:
Charge: 0℃~45℃ Discharge: -20℃~60℃
Charging Temperaturetion:
0~60 °C
Discharging Temperature:
-20~ 60°C
Product Description

SHenzhen Huaxing long life 32700 lithium battery for home storage



Product Name : Cylindrical Rechargeable Lithium-ion Cell

Product Model: LiFePO4-32700- 6.0Ah



Features:

  • Sturdy and pressure resistant steel envelope
    High capacity
    Excellent cycle life
    Excellent high and low temperature performance
    Steady output voltage
    Low self-discharge
    Double safety protection
    With outstanding high level of vibrations and shocks

Applications:

  • -Best solution to replacement of lead acid battery 12V/48V
    -Marine power energy storage, boat, yachts, sailing back-up power supply
    -RV/camping energy storage for appliances, such lights, refrigerator, heating and so on.
    -Light electric vehicle, like golf cart, scooter, E-rickshaw, two/three wheelers



Product Introduction:



  • The IFR32700 type cylindrical LiFeP04 single cell has the advantages of small size, light weight, environmental protection,
  • High safety, long life and other advantages.
  • It is widely used in various battery combinations such as automotive batteries, start-up power supplies, energy storage, etc.

lifepo4 cells.jpgrechargeable LiFePO4 cells.jpg

Battery Structure:

Hunan Huaxing battery cell belongs to cylindrical lithium iron phosphate battery. The single cell contains a built-in vent tube and a safety valve to
enhance its safety protection function. The "dual protection" effectively solves the lithium battery's high temperature caused by extreme
conditions such as overcharge, short circuit and collision safe question.

lithium battery structure.jpg



1.Using high safety positive and negative electrode materials.

2.Using flame retardant electrolyte

3.Using high temperature resistant diaphragm



HUAXING 32700 LIFEPO4 CELL SPECIFICATION:



Item Condition/Note Specification
Norminal Capacity 1C discharge capacity 6.0Ah
Minimum Capacity 1C discharge capacity 5.8Ah
AC Impedance At AC 1000 Hz ≤8mΩ
Nominal Voltage   3.2V
Cell Size Cell Diameter 32.2±0.3 mm x 70.5mm
Cell Weight Bare cell 140±5 g
End-of-charge Voltage CC Mode 3.65V
Max Charging Current   6A
End-of-charge Current CV Mode ≤0.3A
Charging Method Standard Charging ≤1 C at CC/CV
End-of-discharge Voltage CC Mode 2.0V

Max

continuous Discharging Current

  18A

Max

Pulse Discharging Current

  60A
Cycle Life 100 % DOD ≥2000 cycles

Operating

Temperature

Range

Charging Temperature 0~60 °C
  Discharging Temperature -20~ 60°C
  Storage Temperature -20~ 45°C



Srew and stud cells (See the picture):



paste-pic-dp_uuid_65ysy



Packaging and Shipping:

lithium iron cells.jpg

18650 lithium ion cells.jpg



About Huaxing New Energy



cylindrical li ion battery.jpg

Hunan Huaxing New Energy Technology Co., Ltd is a high quality Lithium Ion
Battery company, integrating R&D, manufacturing and sales, providing comprehensive solutions for any application.



-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover



Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017, IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS



Our production Lines:

li ion cylindrical battery.jpg



HUAXING LIFEPO4 BATTERY PACK ROOMS:

lifepo4 cylindrical cell.jpg



32700 lifepo4 battery.jpg





rechargeable battery cells.jpg
