|Battery Type:||LFP Lithium Iron Phosphate||Norminal Capacity:||6.0Ah|
|Minimum Capacity:||5.8Ah||AC Impedance:||≤8mΩ|
|Cell Size:||32.2x70.5mm||Charging Method:||≤1 C At CC/CV|
|End-of-charge Current:||0.3A||End-of-charge Voltage:||3.65V|
|End-of-discharge Voltage:||2V||Max Continuous Discharging Current:||18V|
|Cycle Life:||>2000 Times|

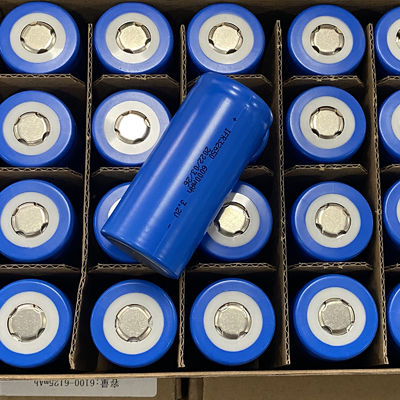

long life LFP Cylindrical Cells,
32700 LFP Cylindrical Cells 3.2v,
Sturdy Lifepo4 Cylindrical Battery
Product Name : Cylindrical Rechargeable Lithium-ion Cell
Model: LiFePO4-32700- 6.0Ah
Factory Direct Sale Deep Cycle 3c Discharge 32650 32700 Lifepo4 Battery Cell 3.2v 6000mah For Electric Vehicles
Sturdy and pressure resistant steel envelope
Excellent cycle life
Excellent high and low temperature performance
Steady output voltage
Double safety protection
With outstanding high level of vibrations and shocks
Hunan Huaxing battery cell belongs to cylindrical lithium iron phosphate battery. The single cell contains a built-in
vent tube and a safety valve to enhance its safety protection function. The "dual protection" effectively solves the
lithium battery's high temperature caused by extreme conditions such as overcharge, short circuit and collision safe question.
1.Using high safety positive and negative electrode materials.
2.Using flame retardant electrolyte
3.Using high temperature resistant diaphragm
|Norminal Capacity||1C discharge capacity||6.0Ah|
|Minimum Capacity||1C discharge capacity||5.8Ah|
|AC Impedance||At AC 1000 Hz||≤8mΩ|
|Cell Size||Cell Diameter||32.2±0.3 mm x 70.5mm|
|Cell Weight||Bare cell||140±5 g|
|End-of-charge Voltage||CC Mode||3.65V|
|Max Charging Current||6A|
|End-of-charge Current||CV Mode||≤0.3A|
|Charging Method||Standard Charging||≤1 C at CC/CV|
|End-of-discharge Voltage||CC Mode||2.0V|
|Max continuous Discharging Current||3C Discharge||18A|
|Max Pulse Discharging Current||60A|
|Cycle Life||100 % DOD||≥2000 cycles|
|Operating Temperature Range||Charging Temperature||0~60 °C|
|Discharging Temperature||-20~ 60°C|
|Storage Temperature||-20~ 45°C|
Hunan Huaxing New Energy Technology Co., Ltd is a high quality Lithium Ion Battery company, integrating R&D, manufacturing
and sales, providing comprehensive solutions for all kinds of applications.
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover
Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017, IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS
Our production Lines:
1. Who Are We?
We are based in Hunan, China, which is our Cylindrical 32700 Battery Cell production center, our develloping center is in Shenzhen.
We sell to Domestic Market(30.00%),
2. How Can We Guarantee Quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.What Can You Buy From Us?
32700 LiFePO4 cell, 12V 100Ah lithium batteries, 48V100Ah telecom battery, 5KWh energy sorage battery, 60V24Ah scooter battery,500Kwh-5Mwh container storage system.
4. Why Should You Buy From Us Not From Other Suppliers?
10 years of R&D and manufacturing experience of Lithium Ion Cells and Batteries for many applications high quality,
factory price, fast delivery high safety, high power, long cycle life, strong environmental adaptability.
5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Contact us right now if you are interested in our 32700 lifepo4 battery cell!
