Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: CE UL PSE BIS RoHS UN38.3 MSDS
Model Number: 32700-3.2V-6.0Ah
Payment & Shipping Terms
Minimum Order Quantity: 80
Price: 2.3
Packaging Details: 31*21*18cm
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000 pcs per day
Battery Type: |
32700 LFP Lithium Iron Phosphate |
Norminal Capacity: |
6.5Ah |
Minimum Capacity: |
5.8Ah |
AC Impedance: |
≤8mΩ |
Cell Size: |
32.2x70.5mm |
Charging Method: |
≤1 C At CC/CV |
End-of-charge Current: |
0.3A |
End-of-charge Voltage: |
3.65V |
End-of-discharge Voltage: |
2V |
Max Continuous Discharging Current: |
18V |
Cycle Life: |
>2000 Times |
Type: |
32700 Cylindrical Lifepo4 |
Size: |
D38±1mm*H122±1mm |
Cycle Life: |
2000 Times |
Keywords: |
32700 Lifepo4 Battery Cell 3.2v 6000mah/32700 3.2v Lifepo4 Cell |
Battery Type: |
32700 LFP Lithium Iron Phosphate |
Norminal Capacity: |
6.5Ah |
Minimum Capacity: |
5.8Ah |
AC Impedance: |
≤8mΩ |
Cell Size: |
32.2x70.5mm |
Charging Method: |
≤1 C At CC/CV |
End-of-charge Current: |
0.3A |
End-of-charge Voltage: |
3.65V |
End-of-discharge Voltage: |
2V |
Max Continuous Discharging Current: |
18V |
Cycle Life: |
>2000 Times |
Type: |
32700 Cylindrical Lifepo4 |
Size: |
D38±1mm*H122±1mm |
Cycle Life: |
2000 Times |
Keywords: |
32700 Lifepo4 Battery Cell 3.2v 6000mah/32700 3.2v Lifepo4 Cell |
Huaxing 2000 Cycle Times Long Life Li Ion Cylindrical 32700 Lifepo4 Battery Cell 3.2v 6000mah For Solar Lights

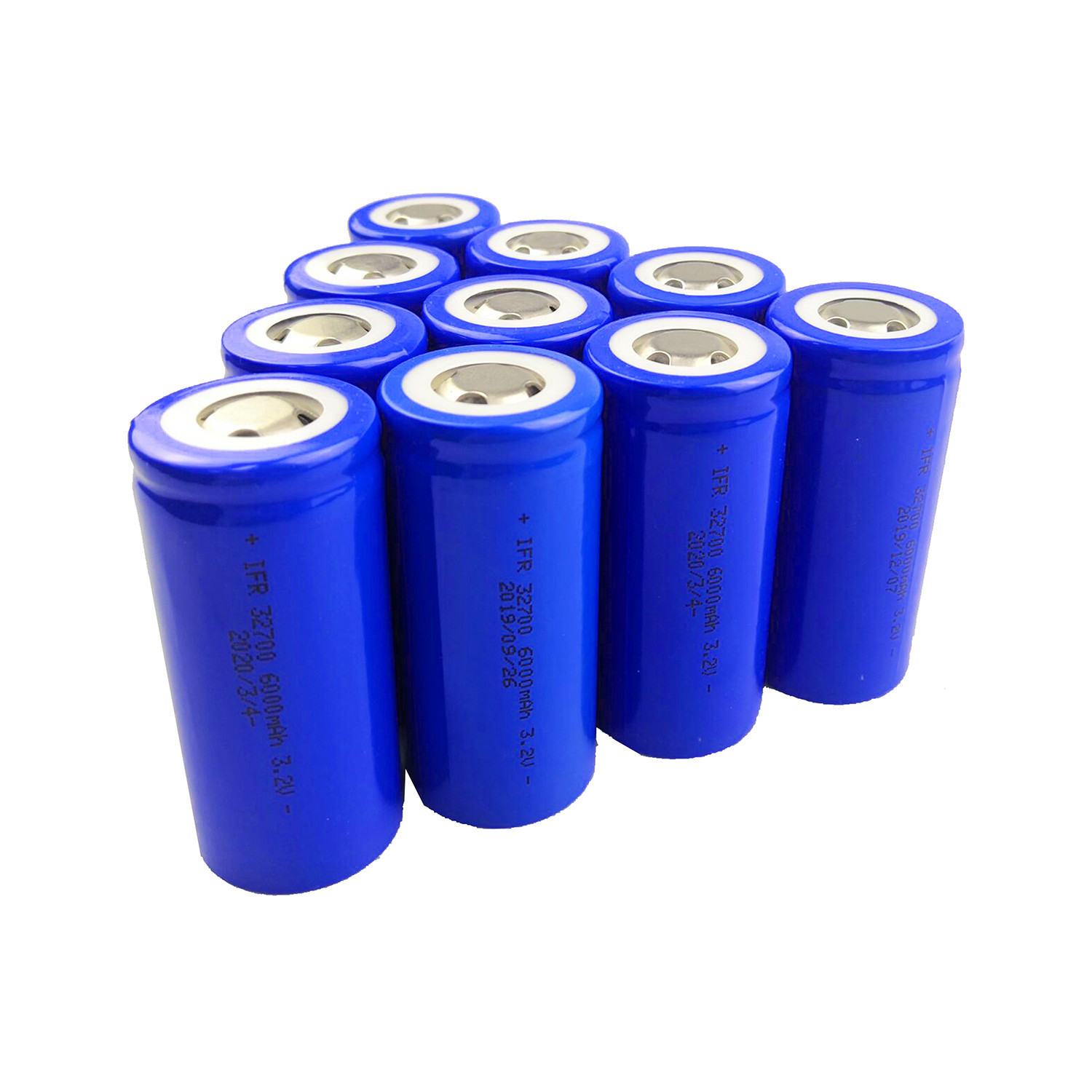

Product Name : Cylindrical Rechargeable Lithium-ion Cell
Product Model: LiFePO4-32700- 6.0Ah
Features:
Applications:
Product Introduction:
Battery Structure:
Hunan Huaxing battery cell belongs to cylindrical lithium iron phosphate battery. The single cell contains a built-in vent tube and a safety valve to
enhance its safety protection function. The "dual protection" effectively solves the lithium battery's high temperature caused by extreme
conditions such as overcharge, short circuit and collision safe question.
1.Using high safety positive and negative electrode materials.
2.Using flame retardant electrolyte
3.Using high temperature resistant diaphragm
HUAXING 32700 LIFEPO4 CELL SPECIFICATION:
| Item | Condition/Note | Specification |
| Norminal Capacity | 1C discharge capacity | 6.0Ah |
| Minimum Capacity | 1C discharge capacity | 5.8Ah |
| AC Impedance | At AC 1000 Hz | ≤8mΩ |
| Nominal Voltage | 3.2V | |
| Cell Size | Cell Diameter | 32.2±0.3 mm x 70.5mm |
| Cell Weight | Bare cell | 140±5 g |
| End-of-charge Voltage | CC Mode | 3.65V |
| Max Charging Current | 6A | |
| End-of-charge Current | CV Mode | ≤0.3A |
| Charging Method | Standard Charging | ≤1 C at CC/CV |
| End-of-discharge Voltage | CC Mode | 2.0V |
|
Max continuous Discharging Current |
18A | |
|
Max Pulse Discharging Current |
60A | |
| Cycle Life | 100 % DOD | ≥2000 cycles |
|
Operating Temperature Range |
Charging Temperature | 0~60 °C |
| Discharging Temperature | -20~ 60°C | |
| Storage Temperature | -20~ 45°C |

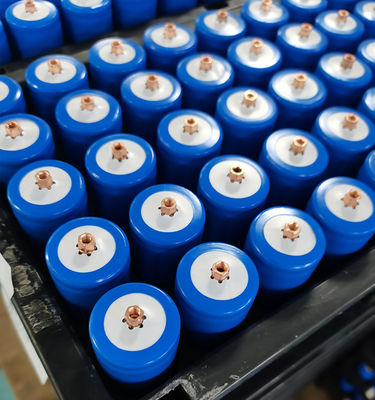

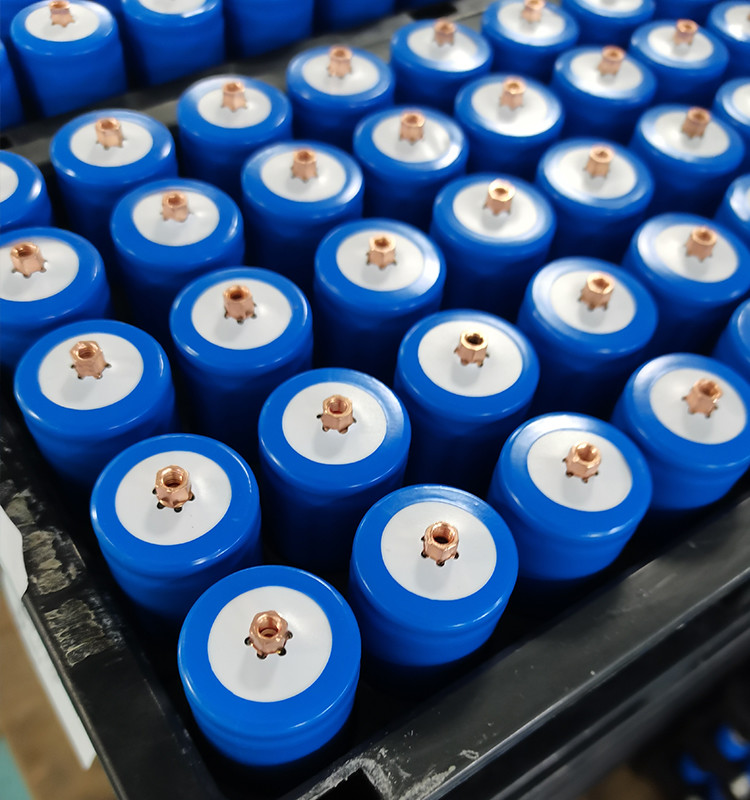

Srew and stud cells (See the picture):
Packaging and Shipping:
About Huaxing New Energy
Hunan Huaxing New Energy Technology Co., Ltd is a high quality Lithium Ion
Battery company, integrating R&D, manufacturing and sales, providing comprehensive solutions for any application.
-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover
Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017, IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS
Our production Lines:
HUAXING LIFEPO4 BATTERY PACK ROOMS:
