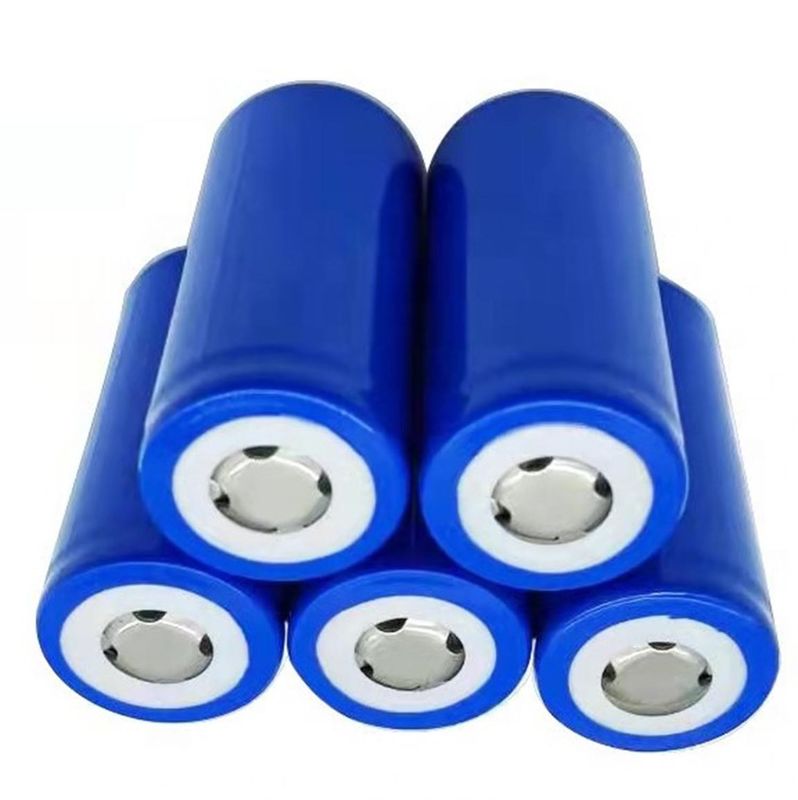

32650 32700 LiFePO4 Cylindrical Cells 3.2v 6ah 3C Discharge Deep Cycle Flame Retardant

Basic Information
Place of Origin: China
Brand Name: Huaxing
Certification: CE UL PSE BIS RoHS UN38.3 MSDS
Model Number: 32700-3.2V-6.0Ah
Minimum Order Quantity: 80
Price: 2.3
Packaging Details: 31*21*18cm
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000 pcs per day
Battery Type: 32700 LFP Lithium Iron Phosphate Norminal Capacity: 6.5Ah
Minimum Capacity: 5.8Ah AC Impedance: ≤8mΩ
Cell Size: 32.2x70.5mm Charging Method: ≤1 C At CC/CV
End-of-charge Current: 0.3A End-of-charge Voltage: 3.65V
End-of-discharge Voltage: 2V Max Continuous Discharging Current: 18V
Cycle Life: >2000 Times Type: 32700 Cylindrical Lifepo4
Size: D38±1mm*H122±1mm Cycle Life: 2000 Times
Keywords: Lifepo4 Cells 32650
High Light:

LiFePO4 Cylindrical Cells Deep Cycle

,

Flame Retardant LiFePO4 Cylindrical Cells

,

3C Discharge Lifepo4 Cylindrical Battery

3.2v 6ah 3c Discharge Deep Cycle Flame Retardant Electrolyte Cuylindrical 32650 Lifepo4 32700 Cell



Product Name : Cylindrical Rechargeable Lithium-ion Cell 32650 lifepo4 cell 6000mah

Product Model: LiFePO4-32700- 6.0Ah



Features:

Applications:



Product Introduction:



lifepo4 cells.jpgrechargeable LiFePO4 cells.jpg

Battery Structure:

Hunan Huaxing battery cell belongs to cylindrical lithium iron phosphate battery. The single cell contains a built-in vent tube and a safety valve to
enhance its safety protection function. The "dual protection" effectively solves the lithium battery's high temperature caused by extreme
conditions such as overcharge, short circuit and collision safe question.

lithium battery structure.jpg



1.Using high safety positive and negative electrode materials.

2.Using flame retardant electrolyte

3.Using high temperature resistant diaphragm



HUAXING 32700 LIFEPO4 CELL SPECIFICATION:



Item Condition/Note Specification
Norminal Capacity 1C discharge capacity 6.0Ah
Minimum Capacity 1C discharge capacity 5.8Ah
AC Impedance At AC 1000 Hz ≤8mΩ
Nominal Voltage   3.2V
Cell Size Cell Diameter 32.2±0.3 mm x 70.5mm
Cell Weight Bare cell 140±5 g
End-of-charge Voltage CC Mode 3.65V
Max Charging Current   6A
End-of-charge Current CV Mode ≤0.3A
Charging Method Standard Charging ≤1 C at CC/CV
End-of-discharge Voltage CC Mode 2.0V

Max

continuous Discharging Current

  18A

Max

Pulse Discharging Current

  60A
Cycle Life 100 % DOD ≥2000 cycles

Operating

Temperature

Range

Charging Temperature 0~60 °C
  Discharging Temperature -20~ 60°C
  Storage Temperature -20~ 45°C



Srew and stud cells (See the picture):



paste-pic-dp_uuid_65ysy



Packaging and Shipping:

lithium iron cells.jpg

18650 lithium ion cells.jpg



About Huaxing New Energy



cylindrical li ion battery.jpg

Hunan Huaxing New Energy Technology Co., Ltd is a high quality Lithium Ion
Battery company, integrating R&D, manufacturing and sales, providing comprehensive solutions for any application.



-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover



Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017, IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS



Our production Lines:

li ion cylindrical battery.jpg



HUAXING LIFEPO4 BATTERY PACK ROOMS:

lifepo4 cylindrical cell.jpg



32700 lifepo4 battery.jpg





rechargeable battery cells.jpg
