32650 32700 6000mah Lifepo4 Cylindrical Battery Pin Screw Ul Deep Cycle BIS CE UN38.3

Basic Information
Place of Origin: China
Brand Name: Huaxing
Certification: CE UL PSE BIS RoHS UN38.3 MSDS
Model Number: 32700-3.2V-6.0Ah
Minimum Order Quantity: 80
Price: 2.3
Packaging Details: 31*21*18cm
Delivery Time: 5-8 workdays
Payment Terms: L/C, D/P, T/T
Supply Ability: 100000 pcs per day
Battery Type: 32700 LFP Lithium Iron Phosphate Norminal Capacity: 6.5Ah
Minimum Capacity: 5.8Ah AC Impedance: ≤8mΩ
Cell Size: 32.2x70.5mm Charging Method: ≤1 C At CC/CV
End-of-charge Current: 0.3A End-of-charge Voltage: 3.65V
End-of-discharge Voltage: 2V Max Continuous Discharging Current: 18V
Cycle Life: >2000 Times Type: 32700 Cylindrical Lifepo4
Size: D38±1mm*H122±1mm Cycle Life: 2000 Times
Keywords: 32650 Lifepo4 Cell/32700 Lifepo4 Battery 7000mah
High Light:

Lifepo4 Cylindrical Battery 6000mah

,

Deep Cycle Lifepo4 Cylindrical Battery

,

BIS cylindrical lifepo4 battery



Product Description

Product Name : Shenzhen Huaxing Bis Ce Un38.3 Pin Screw Ul Deep Cycle 32650 32700 6000mah Lithium Battery Cells

Model: LiFePO4-32700- 6.0Ah

Deep Cycle Rechargeable Lithium Ion Ifr Battery 32700 3.2v 100ah Lifepo4 Battery Cell For Ev

Product Introduction:



Features:

Sturdy and pressure resistant steel envelope
High capacity
Excellent cycle life
Excellent high and low temperature performance
Steady output voltage
Low self-discharge
Double safety protection
With outstanding high level of vibrations and shocks

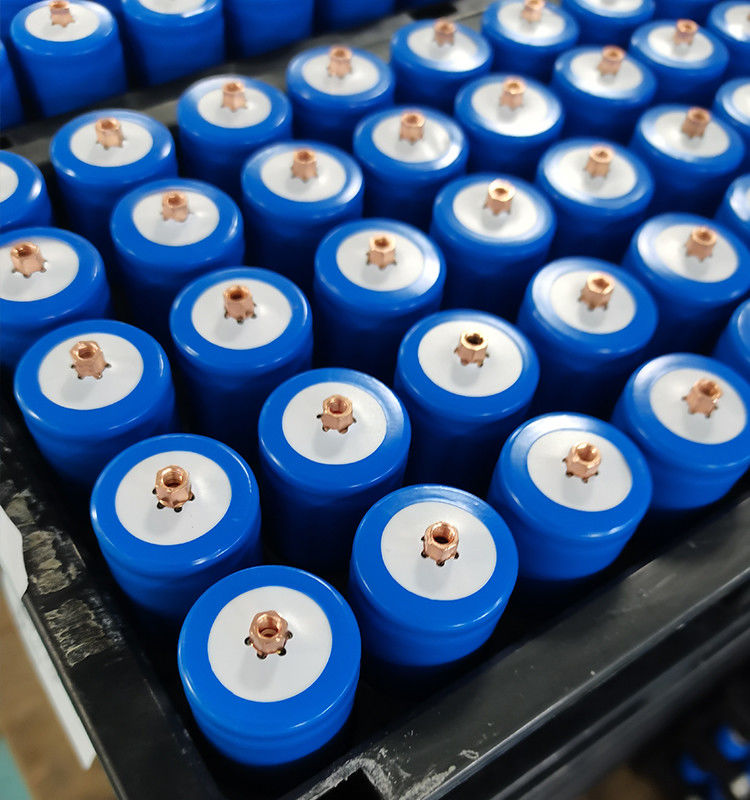

32700 lifepo4 battery.jpg

Lifepo4 Battery Cell.jpg





Applicaitons



32700 LifePO4 Cell.jpg

Lithium Iron Battery Cell.jpg



Product Datasheet



HUAXING 32700 LIFEPO4 BATTERY CELL SPECIFICATION:



Specification Condition/Note Content
Norminal Capacity 1C discharge capacity 6.0Ah
Minimum Capacity 1C discharge capacity 5.8Ah
AC Impedance At AC 1000 Hz ≤8mΩ
Nominal Voltage   3.2V
Cell Size Cell Diameter 32.2±0.3 mm x 70.5mm
Cell Weight Bare cell 140±5 g
End-of-charge Voltage CC Mode 3.65V
Max Charging Current   6A
End-of-charge Current CV Mode ≤0.3A
Charging Method Standard Charging ≤1 C at CC/CV
End-of-discharge Voltage CC Mode 2.0V
Max continuous Discharging Current 3C Discharge 18A
Max Pulse Discharging Current   60A
Cycle Life 100 % DOD ≥2000 cycles
Operating Temperature Range Charging Temperature 0~60 °C
Discharging Temperature   -20~ 60°C
Storage Temperature   -20~ 45°C





Packaging & Shipping



lithium iron cells.jpg





Company Information





cylindrical li ion battery.jpg

Hunan Huaxing New Energy Technology Co., Ltd is a high quality Lithium Ion Battery company, integrating R&D, manufacturing

and sales, providing comprehensive solutions for all kinds of applications.



-1000 Staff
-50,000 square meters of workshops
-3GWh annual production capacity
-300 million dollars annual turnover



Quality Management System: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Product Safety and Performance Certificate: UL1642, IEC62619:2017, IEC62133:2017,
IEC61960:2011, CE, BIS, PSE, ROHS, UN38.3, MSDS



Our production Lines:

li ion cylindrical battery.jpg

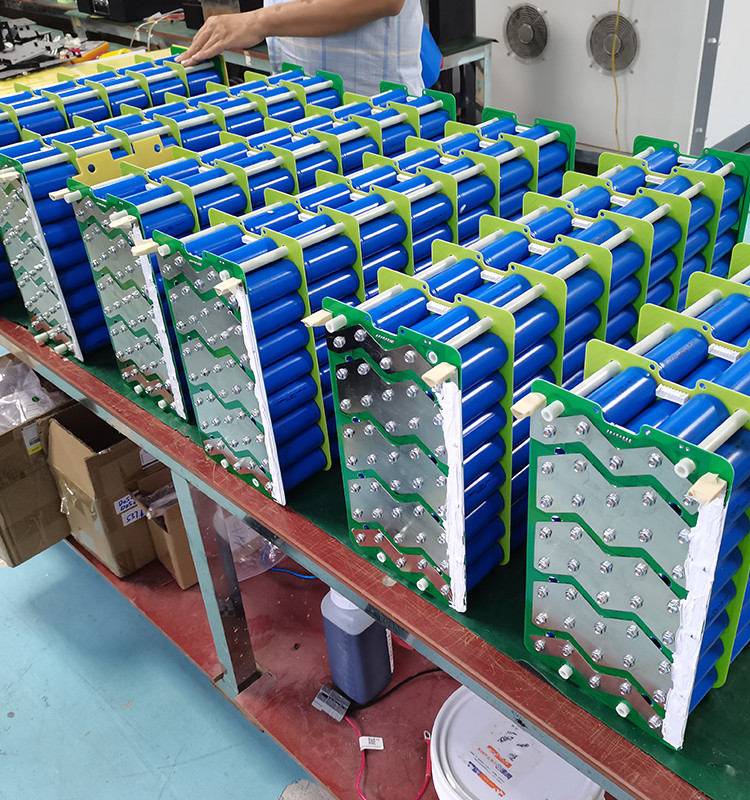

HUAXING LIFEPO4 BATTERY PACK ROOMS:

lifepo4 cylindrical cell.jpg



FAQ

1. Who Are We?

We are based in Hunan, China, which is our Cylindrical 32700 Battery Cell production center, our battery pack center is in Shenzhen.



2. How Can We Guarantee Quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;



3.What Can You Buy From Us?

32700 LiFePO4 cell, 12V 100Ah lithium batteries, 48V100Ah telecom battery, 5KWh energy sorage battery, 60V24Ah scooter battery,500Kwh-5Mwh container storage system.



4. Why Should You Buy From Us Not From Other Suppliers?

10 years of R&D and manufacturing experience of Lithium Ion Cells and Batteries for many applications high quality,

factory price, fast delivery high safety, high power, long cycle life, strong environmental adaptability.



5. What Services Can We Provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery;

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;

Accepted Payment Type: T/T,L/C,Western Union,Cash;

Language:English,Chinese,Spanish,Japanese,Portuguese,German,French,Russian,Korean,Italian



Contact us right now if you are interested in our 32700 lifepo4 battery cell!
