ESS Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery

Product Details

Place of Origin: China

Brand Name: HX

Certification: SGS/CE/Rosh

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: 750

Packaging Details: Carton+wooden frame

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 5000

Get Best Price
Product Details
High Light:

Lithium Ion ESS Battery

,

Solar Power System Battery 48V

Product Description

 Ess Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery









Basic Info.

Model NO.
SPW5KWH-10KWH
Cell Model
3.2V 100ah
Scalability
up to 10 Parallel
IP Grade
IP21
Specification
680*485*180(220mm)
Origin
China
HS Code
8507600090
Production Capacity
500PCS/Day

Product Description


Ess Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery
Model
5000W
7000W
10000W
Nominal Voltage
51.2V(16series)
Capacity
100Ah
150Ah
200Ah
Battery Energy
5120Wh
7680Wh
10240Wh
Internal Resistance
≤30mΩ
Cycle Life
≥6000 cycles @80% DOD, 25ºC, 0.5C
Design Life
≥10 years
Charge Cut-off Voltage
56.0V ±0.5V
Max. Continuous Work Current
100A/150A(Can Choose)
Discharge Cut-off Voltage
45V ±0.2V
Charge Temperature
0ºC~60ºC(Under 0ºC extra heating mechanism)
Discharge Temperature
-20ºC~60ºC(Under 0ºC work with reduced capacity)
Storage Temperature
-40ºC~55ºC @ 60% ± 25% relative humidity)
Dimensions
680 x 485x 180(220mm)
Weight
Approx : 65kg
Approx : 85kg
Approx : 98kg
Protocol (optional)
RS232-PC, RS485(B)-PC
RS485(A)- Inverter, Canbus-Inverter
Ess Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery

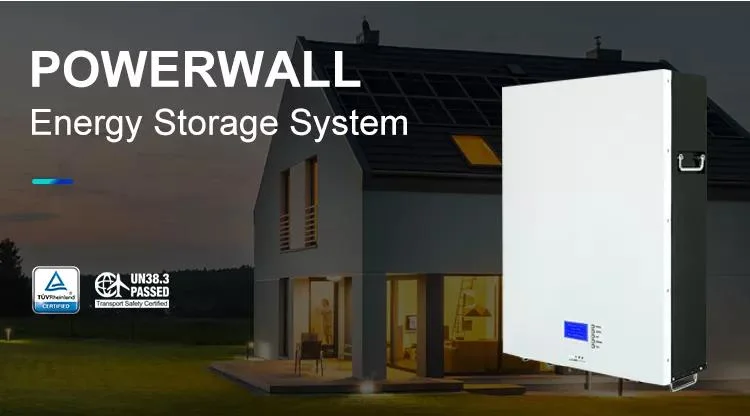

LFP-Powerwall box

*Low-voltage lithium battery. With a scalable modular design, the capacity range can be expanded from 10.24kWh to 102.4kWh.

*The modules are connected by cables to support high-power work and are easy to install and maintain. Long life technology ensures more than 6000 cycles with 90% DOD.
Performance

*High security technology ensures stable and excellent perfor-mance.

*Compatible with multiple inverters including KSTAR DEYE GOODWE Solis Growatt Voltronic....

*It provides highly effcient energy solutions for household scenarios and small commercial scenarios.
Ess Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery
Ess Battery Solar Power System Battery 50ah 100ah 200ah 48V 5kw 10kw Lithium Ion Battery

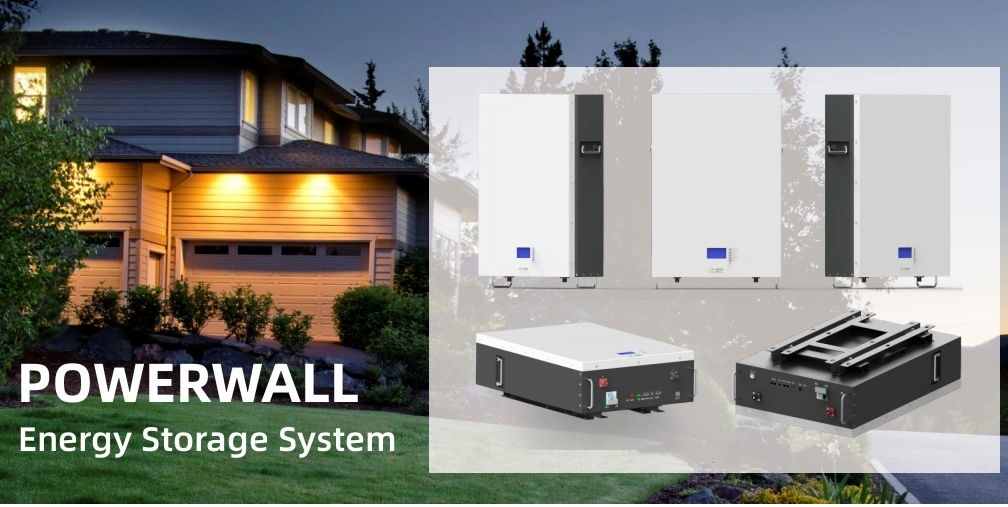

Smart&Modular Design
Power storage wall is a battery that stores energy, detects outages and automatically becomes your home's energy source when the grid goes down. Unlike gasoline generators, Power storage wall keeps your lights on and phones charged without upkeep, fuel or noise. Pair with solar and recharge with sunlight to keep your appliances running for days
