Product Details
Place of Origin: China
Brand Name: Battlink
Certification: CE,G83/G59,VDE0126-1-1,AS4777,AS/NZS3100,CE10-21,VDE-AR-N4105
Model Number: HI-K-TH
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden
Delivery Time: 35days
Payment Terms: T/T
Supply Ability: 10000pcs per month
LCD Display: |
Yes |
Communication Interface: |
WiFi/4G/USB/CAN/RS485 |
Warranty: |
5years(standard) |
Standards: |
CE,G83/G59,VDE0126-1-1,AS4777,AS/NZS3100,CE10-21,VDE-AR-N4105 |
Operation Temperature Range: |
-25°C~+60°C |
IP Class: |
IP66 |
LCD Display: |
Yes |
Communication Interface: |
WiFi/4G/USB/CAN/RS485 |
Warranty: |
5years(standard) |
Standards: |
CE,G83/G59,VDE0126-1-1,AS4777,AS/NZS3100,CE10-21,VDE-AR-N4105 |
Operation Temperature Range: |
-25°C~+60°C |
IP Class: |
IP66 |
Product Description:

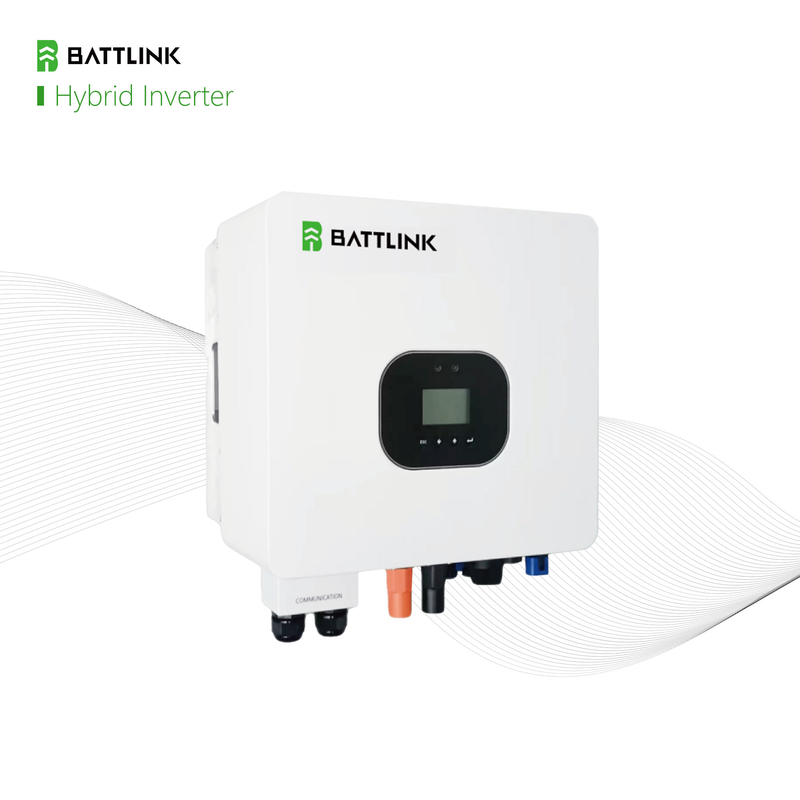

The Battlink home energy storage hybrid inverter is designed to deliver a safe, reliable, and intelligent energy management experience. Featuring advanced safety mechanisms and a smart management system, it ensures optimal performance even in challenging environments. With superior stability in low temperatures, an IP65-rated waterproof and dustproof design, and built-in lightning protection, it guarantees the safety of household electricity.
This hybrid inverter efficiently stores excess energy while providing intelligent load management. Users can choose from multiple customizable operation modes to meet diverse energy needs, offering a smarter, more sustainable home energy solution.
| Technical Data | HF-8K | HF-10K | HF-12K | HF-15K | HF-20K |
| PV String Input Data | |||||
| Max. DC input power(KW) | 12 | 15 | 18 | 23 | 30 |
| Max. DC input voltage(V) | 1000 | ||||
| MPPT working voltage range(V) | 180-950 | ||||
| Number of independent MPPT/strings per MPPT |
2/1 | 2/1 | 2/1 | 2/2 | 2/2 |
| MPPT max. current(A) | 20/20 | ||||
| AC Output/Input Data (On-grid) | |||||
| Nominal output apparent power(KW) | 8 | 10 | 12 | 15 | 20 |
| Max. output apparent power(KVA) | 8.8 | 11 | 13.2 | 16.5 | 22 |
| Nominal output voltage(V) | 400 | ||||
| Nominal ouput freqency(Hz) | 50/60 | ||||
| Max. output current(A) | 13 | 16 | 19 | 24 | 32 |
| Grid system pattern | 3L+N+PE | ||||
| Back-up Output Data (UPS) | |||||
| Nominal output apparent power(KVA) | 8 | 10 | 12 | 15 | 20 |
| Max output apparent power(KVA) | 8.8 | 11 | 13.2 | 16.5 | 22 |
| Nominal output voltage(V) | 400 | ||||
| Nominal ouput frequency(Hz) | 50/60 | ||||
| Automatic switch time(ms) | ≤10ms | ||||
| Battery Input Data | |||||
| Battery type | LPF | ||||
| Battery voltage range(V) | 150-750 | ||||
| Max. charging/discharging current(A) | 30 | 30 | 30 | 50 | 50 |
| General Data | |||||
| Max. efficiency | 98% | ||||
| Protection | Anti islanding protection,Insulation impedance protection, RCD detection,PV reverse polarity protection, Output over voltage protection, Output over current protection |
||||
| Operation temperature range(℃) | 25～60 | ||||
| Heat dissipation mode | Natural | ||||
| IP Class | IP 65 | ||||
| Communication interface | WiFi/4G/USB/CAN/RS485 | ||||
| Dimensions(L*W*H,mm) | 403*284*463 | ||||
| Weight(kg) | 30 | ||||
