Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: CE
Model Number: HX12100
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: US$270-320 per pks
Packaging Details: 1 pks per UN carton
Delivery Time: 20-25 days
Supply Ability: 100 pks per day
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
100Ah |
Max Constant Current: |
100A |
Max Charge Voltage: |
14.6V |
Cut Off Voltage: |
10V |
Plastic Case: |
328±1*171±1*215±1mm |
Weight: |
13Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
12.8V |
Nominal Capacity: |
100Ah |
Max Constant Current: |
100A |
Max Charge Voltage: |
14.6V |
Cut Off Voltage: |
10V |
Plastic Case: |
328±1*171±1*215±1mm |
Weight: |
13Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |

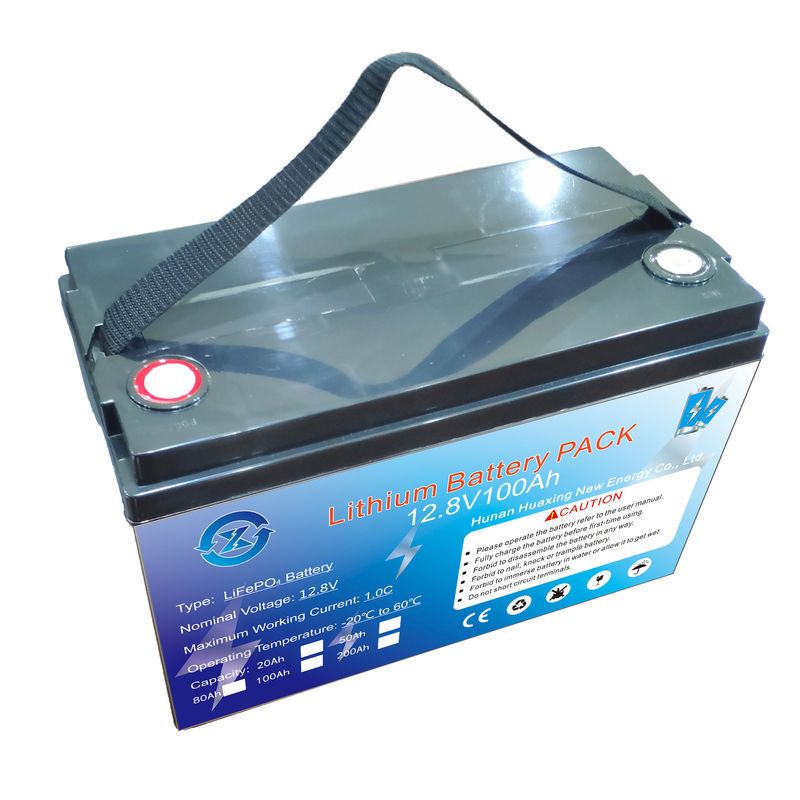

Over 2000 Cycles High Output 12v 100ah RV Lithium Ion Battery With BMS For Motorhome/RV/Camper
Products Features
Reliable,power lithium batteries
Wide applications:RV/Motorhome,Golf cart,Marine,Solar system
Light weight
Environmental friendly
12V 100AH Lithium ion battery specification
|
No. |
Item |
General Parameter |
|
1 |
Model |
HX12100 |
|
2 |
Standard Capacity |
100AH |
|
3 |
Rated Voltage |
12.8V |
|
4 |
Max Charge Voltage |
14.6V |
|
5 |
Discharge Cut Off Voltage |
10V |
|
6 |
Standard Charge Current |
50A |
|
7 |
Max Continuous Discharge Current |
100A |
|
8 |
Peak Instant Discharge Current |
200A with 5S |
|
9 |
Dimension(ABS) |
328±1*171±1*215±1mm |
|
10 |
Total weight(Approx.) |
13kg |
|
11 |
Operate Temperature |
-20°C~60°C |
|
12 |
Built-in BMS |
YES |
|
13 |
Cycle Times |
2000 cycles |
12V 100AH Lithium ion battery BMS specification
|
Item |
Content |
Criterion |
|
Charge and Discharge Port |
Shared |
|
|
Communication |
None |
|
|
Parallel Connection |
None |
|
|
Serial Connection |
Max. 4pcs |
|
|
Normal Current |
Charge Current |
≤100A |
|
Discharge Current |
≤100A |
|
|
Over charge Protection |
Over charge detection voltage |
3.75±0.05V |
|
Over charge detection delay time |
~1000mS |
|
|
Over charge release voltage |
3.55±0.05V |
|
|
Over charge release condition |
Cut off charger |
|
|
Maximum charge voltage |
3.65±0.05V |
|
|
Over discharge protection |
Over discharge detection voltage |
2.20V±0.10V |
|
Over discharge detection delay time |
200ms |
|
|
Over discharge release voltage |
2.4V±0.10V |
|
|
Discharge over current protection |
Discharge over current detection current |
330±30A |
|
Discharge over current detection delay time |
~100±50ms |
|
|
Discharge over current release condition |
Cut load |
|
|
Short circuit protection |
YES |
|
Main Applications:
Package Information:
|
DESCRIPTION |
QUANTITY/CTN |
PACKAGE |
GROSS WEIGHT |
NET WEIGHT |
DIMS(m³) |
|
(PCS) |
CARTONS SIZE(MM) |
(KG) |
(KG) |
||
|
12V100AH LiFePo4 Battery |
1 |
460*250*220 |
14 |
13 |
0.03 |
20ft container can load 600 pks 12V100Ah lithium battery pack
40ft container can load 1200 pks 12V100Ah lithium battery pack
