Product Details
Place of Origin: China
Brand Name: Huaxing
Certification: CE
Model Number: HX2440S
Payment & Shipping Terms
Minimum Order Quantity: 10
Price: Negotiation
Packaging Details: 1 pks per UN carton
Delivery Time: 20-25 days
Supply Ability: 100 pks per day
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
40Ah |
Max Constant Current: |
100A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Plastic Case: |
Customized |
Weight: |
13Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Applications: |
Motorhome,RV,Military Back Up,solar Street Light,UPS,AGV |
Material: |
LiFePo4/Graphite |
Nominal Voltage: |
25.6V |
Nominal Capacity: |
40Ah |
Max Constant Current: |
100A |
Max Charge Voltage: |
29.2V |
Cut Off Voltage: |
20V |
Plastic Case: |
Customized |
Weight: |
13Kg |
Cycles Life: |
2000 Cycles |
Warranty: |
2 Years |
Applications: |
Motorhome,RV,Military Back Up,solar Street Light,UPS,AGV |

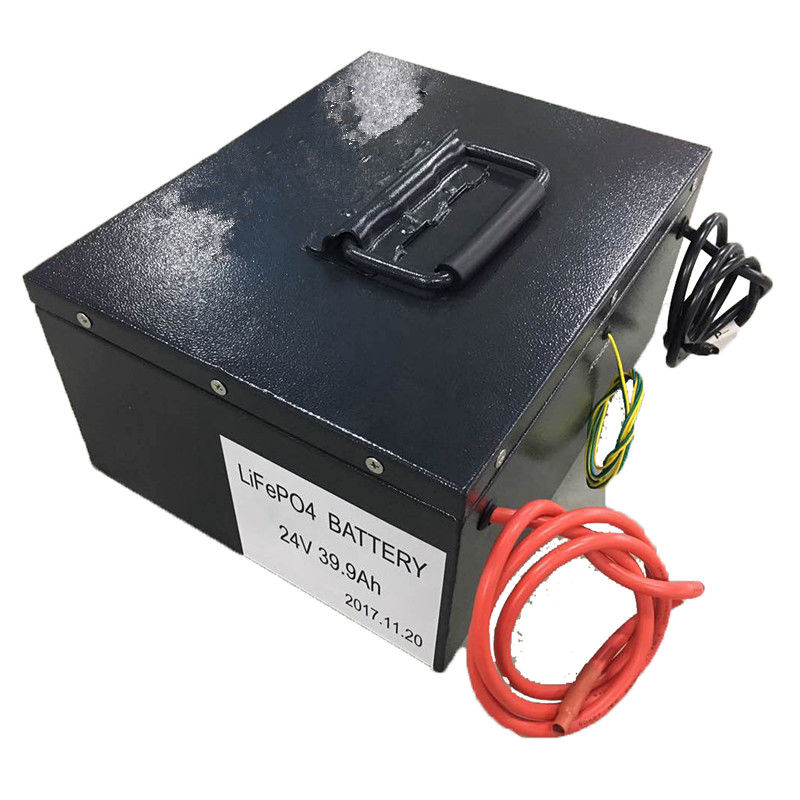

24V 40AH RV Lithium Battery Pack with steel case package
Products Features
Reliable,power lithium batteries
Wide applications:Military back up/RV/Motorhome,Golf cart,Marine,Solar system
Light weight
Environmental friendly
24V40ah RV Lithium Batteries specification
No. |
Item |
General Parameter |
1 |
Model |
HX2450 |
2 |
Standard Capacity |
50AH |
3 |
Rated Voltage |
25.6V |
4 |
Max Charge Voltage |
29.2V |
5 |
Discharge Cut Off Voltage |
20V |
6 |
Standard Charge Current |
25A |
7 |
Max Continuous Discharge Current |
50A |
8 |
Peak Instant Discharge Current |
100A with 5S |
9 |
Dimension(ABS) |
328±1*171±1*215±1mm |
10 |
Total weight(Approx.) |
14kg |
11 |
Operate Temperature |
-20°C~60°C |
12 |
Built-in BMS |
YES |
13 |
Cycle Times |
2000 cycles |
24V100ah LiFePo4 Batteries BMS specification
Item |
Content |
Criterion |
Charge and Discharge Port |
Shared |
|
Communication |
None |
|
Parallel Connection |
None |
|
Serial Connection |
Max. 2pcs |
|
Normal Current |
Charge Current |
≤50A |
Discharge Current |
≤50A |
|
Over charge Protection |
Over charge detection voltage |
3.75±0.05V |
Over charge detection delay time |
~1000mS |
|
Over charge release voltage |
3.55±0.05V |
|
Over charge release condition |
Cut off charger |
|
Maximum charge voltage |
3.65±0.05V |
|
Over discharge protection |
Over discharge detection voltage |
2.20V±0.10V |
Over discharge detection delay time |
200ms |
|
Over discharge release voltage |
2.4V±0.10V |
|
Discharge over current protection |
Discharge over current detection current |
150±30A |
Discharge over current detection delay time |
~100±50ms |
|
Discharge over current release condition |
Cut load |
|
Short circuit protection |
YES |
Main Applications:
24V Stanadrd LiFePo4 battery
24V LiFePO4 Battery Pack | |||||||
Battery Type | 24V6Ah | 24V10Ah | 24V20Ah | 24V30Ah | 24V50Ah | 24V100Ah | 24V130AH |
Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
Nominal Voltage(V) | 12.8 | ||||||
Nominal Capacity (Ah) | 6 | 10 | 20 | 30 | 50 | 100 | 130 |
Charge Voltage (V) | 14.6 | ||||||
Charge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
Discharge Current (A) | ≤6 | ≤10 | ≤20 | ≤30 | ≤50 | ≤100 | ≤100 |
Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
Housing Material | ABS | ||||||
Protection Functions | short circuit, over charge, over discharge, over current, over temperature |
Package Information:
DESCRIPTION |
QUANTITY/CTN |
PACKAGE |
GROSS WEIGHT |
NET WEIGHT |
DIMS(m³) |
(PCS) |
CARTONS SIZE(MM) |
(KG) |
(KG) |
||
24V40AH LiFePo4 Battery |
1 |
460*250*220 |
14 |
13 |
0.03 |
20ft container can load 600 pks 24V50Ah lithium battery pack
40ft container can load 1200 pks 24V50Ah lithium battery pack
Company Profile
Our company passed ISO9001:2015 and iSO14001:2015 and ISO45001:2018
Our 32700 LFP cell passed UL1642/IEC62619/IEC61960/IEC62133/CE/PSE/BIS/Rohs/UN38.8 and MSDS.
Hunan Huaxing New Energy Technology Co.,Ltd is R&D production and sales of 32700 LiFePo4 cells and battery pack.
We have over 50,000㎡ cell and pack workshop.With an annual production of 3GWh cell equipment and at technical R&D team.
The comparison between SLA and LFP
LFP battery | SLA battery | Remarks | |
Weight | high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the total weight of application |
Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2 years |
Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of discharge |
Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency |
Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting efficiency of electrical components |
Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead |
