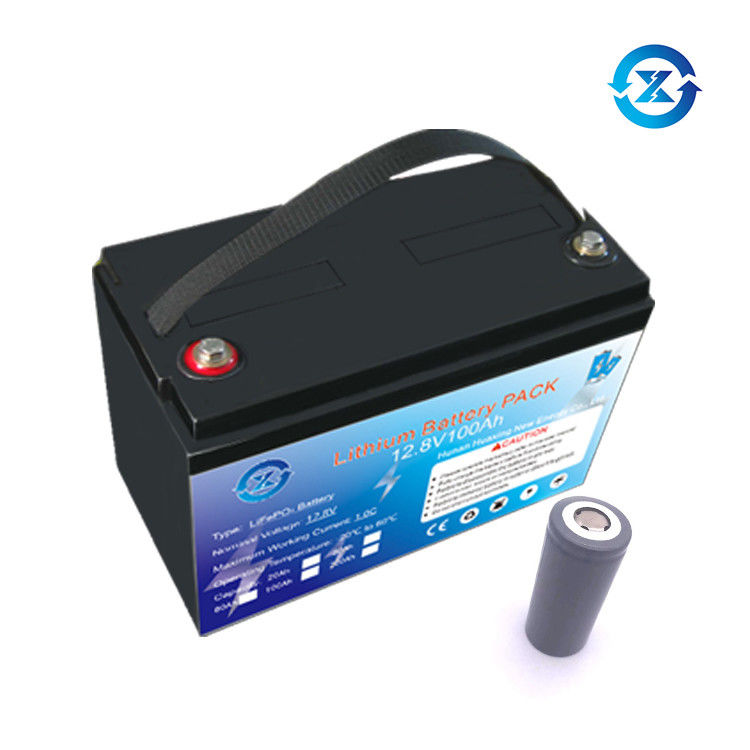

Parallel Connection ABS 5S 12V 100ah Lithium RV Battery

Name: Parallel Connection ABS 5S 12V 100ah Lithium RV Battery
Brand: Shenzhen Huaxing New Energy Technology Co.,Ltd
SKU: HX12100
Price: 295.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Huaxing

Certification: CE

Model Number: HX12100

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: US$270-320 per pks

Packaging Details: 1 pks per UN carton

Delivery Time: 20-25 days

Supply Ability: 100 pks per day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                5S 12V 100ah Lithium RV Battery, ABS 12V 100ah Lithium RV Battery, 5S 12V Lithium Ion RV Battery


Material:	LiFePo4/Graphite	Nominal Voltage:	12.8V
Nominal Capacity:	100Ah	Max Constant Current:	100A
Max Charge Voltage:	14.6V	Cut Off Voltage:	10V
Plastic Case:	328±1171±1215±1mm	Weight:	13Kg
Cycles Life:	2000 Cycles	Warranty:	2 Years

Material:	LiFePo4/Graphite
Nominal Voltage:	12.8V
Nominal Capacity:	100Ah
Max Constant Current:	100A
Max Charge Voltage:	14.6V
Cut Off Voltage:	10V
Plastic Case:	328±1171±1215±1mm
Weight:	13Kg
Cycles Life:	2000 Cycles
Warranty:	2 Years

Product Description

Series Or Parallel Connection 12V 100Ah LifePO4 Lithium Batteries For Caravan With Carry Handles

12V 100Ah LiFePO4 lithium batteries features

Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity

Wider Temperature Range : -20℃~60℃
Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

12V 100AH Lithium ion battery specification

No.	Item	General Parameter
1	Model	HX12100
2	Standard Capacity	100AH
3	Rated Voltage	12.8V
4	Max Charge Voltage	14.6V
5	Discharge Cut Off Voltage	10V
6	Standard Charge Current	50A
7	Max Continuous Discharge Current	100A
8	Peak Instant Discharge Current	200A with 5S
9	Dimension(ABS)	328±1171±1215±1mm
10	Total weight(Approx.)	13kg
11	Operate Temperature	-20°C~60°C
12	Built-in BMS	YES
13	Cycle Times	2000 cycles

12V 100AH Lithium ion battery BMS specification

Item	Content	Criterion
Charge and Discharge Port		Shared
Communication		None
Parallel Connection		Max 4 pcs
Serial Connection		Max. 4pcs
Normal Current	Charge Current	≤100A
Normal Current	Discharge Current	≤100A
Over charge Protection	Over charge detection voltage	3.75±0.05V
	Over charge detection delay time	~1000mS
	Over charge release voltage	3.55±0.05V
	Over charge release condition	Cut off charger
	Maximum charge voltage	3.65±0.05V
Over discharge protection	Over discharge detection voltage	2.20V±0.10V
	Over discharge detection delay time	200ms
	Over discharge release voltage	2.4V±0.10V
Discharge over current protection	Discharge over current detection current	330±30A
	Discharge over current detection delay time	~100±50ms
	Discharge over current release condition	Cut load
Short circuit protection	YES

Main Applications:

RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
Telecommunication, back-up power supply, UPS
Storage energy for solar system, solar street, home energy storage and so on

Package Information:

DESCRIPTION	QUANTITY/CTN	PACKAGE	GROSS WEIGHT	NET WEIGHT	DIMS(m³)
DESCRIPTION	(PCS)	CARTONS SIZE(MM)	(KG)	(KG)	DIMS(m³)
12V100AH LiFePo4 Battery	1	460250220	14	13	0.03

Parallel Connection ABS 5S 12V 100ah Lithium RV Battery 0

20ft container can load 600 pks 12V100Ah lithium battery pack

40ft container can load 1200 pks 12V100Ah lithium battery pack

Parallel Connection ABS 5S 12V 100ah Lithium RV Battery 1

Parallel Connection ABS 5S 12V 100ah Lithium RV Battery 2

32700 LFP cell certificate

Parallel Connection ABS 5S 12V 100ah Lithium RV Battery 3
