Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX4812AH
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per month
Voltage: |
51.2V |
Capacity: |
12Ah |
Max Charge Current:: |
12A |
Max Discharge Current:: |
12A |
Peak Current:: |
24A |
OEM: |
YES |
Life Cycles: |
Over 2000times |
Application: |
UPS,solar System,golf Car |
Voltage: |
51.2V |
Capacity: |
12Ah |
Max Charge Current:: |
12A |
Max Discharge Current:: |
12A |
Peak Current:: |
24A |
OEM: |
YES |
Life Cycles: |
Over 2000times |
Application: |
UPS,solar System,golf Car |
1.This 12V12Ah LFP battery system has built-in BMS and stainless steel box painted in
black or white. 1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life (more than 3000 cycles at 80% DOD)
3. Bulit-in smart BMS with multiple protection and communication functions
4. Wide working temperature range and high reliability
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.

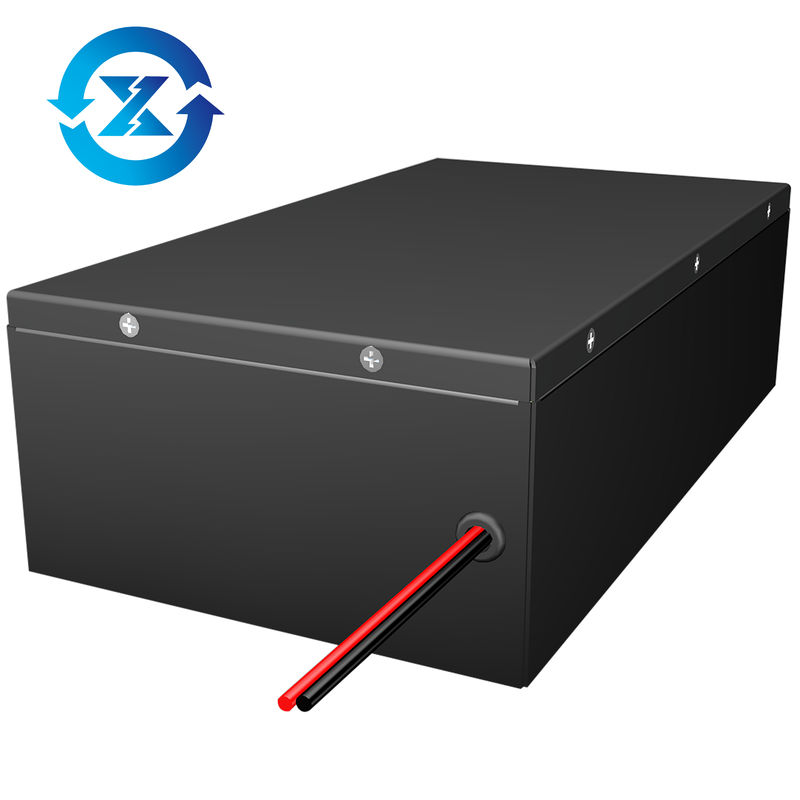

48V12AH LiFePo4 battery ABS pacakge specification
| Battery type | 48V50Ah Lifepo4 battery | |
| 1 | Nominal Voltage(V): | 51.2V |
| 2 | Voltage Range(V): | 40~58.4 |
| 3 | Nominal Capacity(Ah): | 12 |
| 4 | Max. Charge Current(A): | 12 |
| 5 | Max. Continuous Discharge Current(A): | 12 |
| 6 | Peak Discharge Current(A): | 24 |
| 7 | Cycle Life(Times): | Over 2000times |
| 8 | Charge way: | CC/CV |
| 9 | Working Temperature: | Charge: 0℃～45℃ Discharge: -20℃～60℃ Storage: -20℃～45℃ |
Our life cycle tests for our lifepo4 battery:
Related lifepo4 battery
About us:
HUAXING NEW ENERGY is a group company.
Our Factory Environment: Welcome to visit us!
The comparison between LFP and NCM
| Items | LiFePO4 Battery | LiNiCoMnO2 Battery(NCM) |
| Nominal Voltage | 3.2V | 3.7V |
| Discharging Rate |
≤10C
|
≤5C |
| Safety | Much more safe at high temperature, or in an accident, no explosion, no fire, successfully pass the safety test | Less safety performance at high temperature, or in an accident. difficult to pass the safety test, such as nail penetration test |
| Working Temperature | -20-70℃. | -20-55℃. |
| Cycle Performance |
More than 4000 cycles at 1C, 80%DOD. The EOL is still 100% after 500 cycles |
About 1500 cycles at 1C, 80%DOD. The EOL is below 98% after 500 cycles |
| Stability | The Olivine type crystal structure is the most stable one, and not decompose in high temperature | The Layer type crystal structure is less stable, easy to decompose and collapse |
| Material | Does not contain any heavy metals and rare metals, raw material can be easily obtained | Co is rare metal, and very limit resource on the globe |
