Home > products > 48V LiFePO4 Battery > Storage Energy 12Ah 48V LiFePO4 Battery For Electric Bike

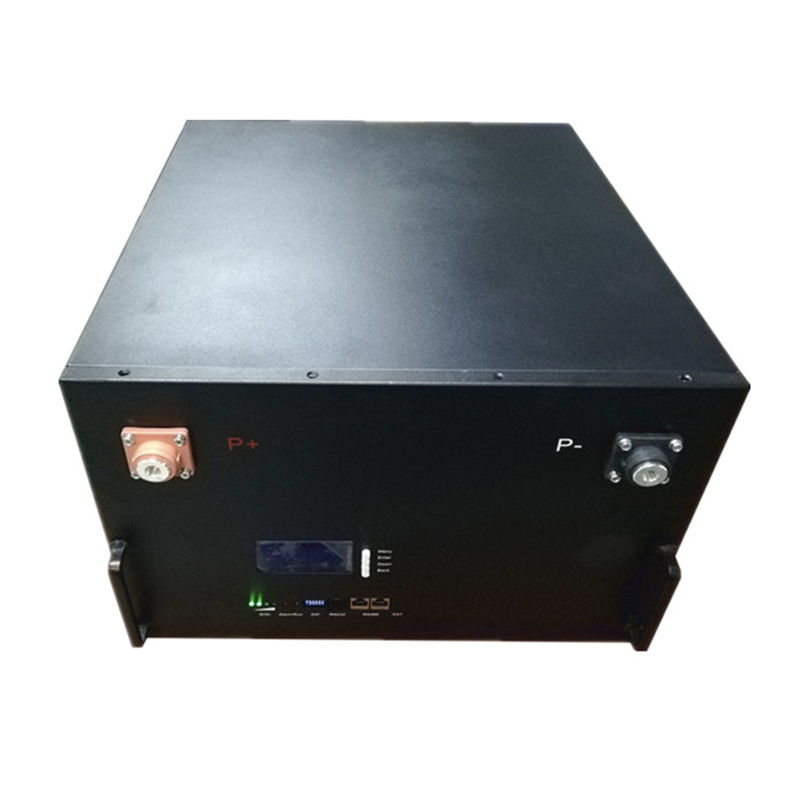

Storage Energy 12Ah 48V LiFePO4 Battery For Electric Bike

Product Details

Place of Origin: China

Brand Name: HUAXING

Certification: MSDS

Model Number: HX4812

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: Carton

Delivery Time: 15days

Payment Terms: T/T, L/C

Supply Ability: 10000pcs per month

Get Best Price
Product Details
High Light:

12Ah 48V LiFePO4 Battery

,

MSDS 48V LiFePO4 Battery

,

12Ah Electric Bike Lithium Battery

Voltage:
51.2V
Capacity:
12Ah
Max Charge Current:
1C
Max Discharge Current:
1C
Peak Current:
2C
OEM:
YES
ODM:
YES
Life Cycles:
Over 2000times
Voltage:
51.2V
Capacity:
12Ah
Max Charge Current:
1C
Max Discharge Current:
1C
Peak Current:
2C
OEM:
YES
ODM:
YES
Life Cycles:
Over 2000times
Product Description

48V LiFePO4 Battery Pack 12Ah Ebike Battery for Electric bike/scooter


Description:

Our Lifepo4 battery, rechargeable LFP battery with BMS, which use our 32700 lifepo4 cell we produce and BMS we design.

LiFePO4 Battery Pack Application

1)  Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, bus, golf

cart, forklift, RV and so on.
2) elecommunication, back-up power supply, UPS

3) Storage energy for solar system, solar street, home energy storage and so on.

48V LiFePO4 Battery​ Features:

1) Environment friendly

2) Safety with BMS

3) Inner best heat dissipation

4) Low self-discharge rate

5) Long cycle life

6) High energy density

7) Excellent performance in all operating temperature

High quality Custom 48v 12Ah best lithium lifepo4 battery
Battery type 51.2V 12Ah Lifepo4 battery
1 Nominal Voltage(V): 51.2V
2 Voltage Range(V): 40~58.4
3 Nominal Capacity(Ah): 12
4 Max. Charge Current(A): 1C
5 Max. Continuous Discharge Current(A): 1C
6 Peak Discharge Current(A): 2C
7 Cycle Life(Times): Over 2000times
8 Charge way: CC/CV
9 Dimension(L*W*H): Customized
10 Working Temperature: Charge: 0℃~45℃
Discharge: -20℃~60℃
Storage: -20℃~45℃




Main Applications:

1) RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.

2) Telecommunication, back-up power supply, UPS

3) Storage energy for solar system, solar street, home energy storage and so on



Storage Energy 12Ah 48V LiFePO4 Battery For Electric Bike 0




Related lifepo4 battery

More information about our common lifepo4 battery types or

customized types,

Pls free free to contact us directly.



Our company other hot sales products

1) 32700 3.2V 6AH LFP cell.

2) 12V 50&100&200&300AH with ABS package to replace tranditional SLA battery.

3) 48V50&100AH with communication BMS for telecom tower.

4) 5KWh and 10KWH lithium battery pack for home energy storage system.

5) 6.4V&9.6V&12V&24V 6-30AH with soft pvc package battery pack for emergency lighting,LED light,flashing light,solar street lighting,and others.

6) 51.2V 12&18&55Ah,64V20&24Ah,76.8V 24&36Ah for e-bike,motorcycle and other low speed vehicles.





Huaxing New Energy


About us:
HUAXING NEW ENERGY is a group company.

The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its subsidiary companies including Hunan Huaxing New Energy Technology Co., Ltd which produces 32700 lifepo4 cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4 battery pack.

We has over 50,000 m2 CELL and PACK workshop. With an annual productivity of 3GWh
cell equipment and a technical R&D team, its annual sales volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and ISO45001:2018.
Our 32700 lifepo4 cell passes: UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/ and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional customized serive, Competitive price, and Great sales team.
Storage Energy 12Ah 48V LiFePO4 Battery For Electric Bike 1





Our Factory Environment: Welcome to visit us!




The comparison between LFP and NCM

Items LiFePO4 Battery LiNiCoMnO2 Battery(NCM)
Nominal Voltage 3.2V 3.7V
Discharging Rate

≤10C



≤5C
Safety Much more safe at high temperature, or in an accident, no explosion, no fire, successfully pass the safety test Less safety performance at high temperature, or in an accident. difficult to pass the safety test, such as nail penetration test
Working Temperature -20-70℃. -20-55℃.
Cycle Performance

More than 4000 cycles at 1C, 80%DOD.

The EOL is still 100% after 500 cycles

About 1500 cycles at 1C, 80%DOD.

The EOL is below 98% after 500 cycles

Stability The Olivine type crystal structure is the most stable one, and not decompose in high temperature The Layer type crystal structure is less stable, easy to decompose and collapse
Material Does not contain any heavy metals and rare metals, raw material can be easily obtained Co is rare metal, and very limit resource on the globe
