Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX4824
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 20-30 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per month
Voltage: |
51.2V |
Capacity: |
24Ah |
Max Charge Current:: |
24A |
Max Discharge Current:: |
24A |
Peak Current:: |
48A |
OEM: |
YES |
Life Cycles: |
Over 2000times |
Application: |
UPS,solar System,golf Car |
Voltage: |
51.2V |
Capacity: |
24Ah |
Max Charge Current:: |
24A |
Max Discharge Current:: |
24A |
Peak Current:: |
48A |
OEM: |
YES |
Life Cycles: |
Over 2000times |
Application: |
UPS,solar System,golf Car |
Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed
vehicle, scooter, golf cart, forklift, RV and so on.
Telecommunication, back-up power supply, UPS
Storage energy for solar system, solar street, home energy storage and so on

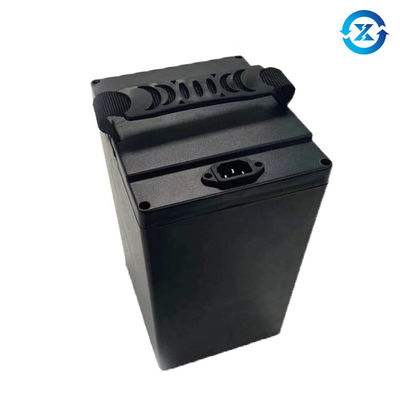

LiFePo4 18AH 48V Lithium Battery for Electric bike/scooter ABS Package
| Battery type | 48V18Ah Lifepo4 battery | |
| 1 | Nominal Voltage(V): | 51.2V |
| 2 | Voltage Range(V): | 40~58.4 |
| 3 | Nominal Capacity(Ah): | 24 |
| 4 | Max. Charge Current(A): | 24 |
| 5 | Max. Continuous Discharge Current(A): | 24 |
| 6 | Peak Discharge Current(A): | 48 |
| 7 | Cycle Life(Times): | Over 2000times |
| 8 | Charge way: | CC/CV |
| 9 | Working Temperature: | Charge: 0℃～45℃ Discharge: -20℃～60℃ Storage: -20℃～45℃ |
Our life cycle tests for our lifepo4 battery:
Related lifepo4 battery
About us:
HUAXING NEW ENERGY is a group company.
Our Factory Environment: Welcome to visit us!
The comparison between LFP and SLA
| LFP battery | SLA battery | Remarks | |
| Weight | high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight | low energy density: 32-37Wh/kg | LFP battery is about 70% size and weight of SLA battery, lower the total weight of application |
| Cycle life | 4000 cycles and more | 400-500 cycles | LFP can be used for almost 10 years; SLA can only last for max. 2 years |
| Capacity Utilisation | 80 to 100% | 50 to 60% | Most lead acid batteries do not recommend more than 50% depth of discharge |
| Efficiency | allows for the same amp hours both in and out | voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging | LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency |
| Voltage | maintain voltage throughout the entire discharge cycle | drops consistently throughout the discharge cycle. | A stable droping voltage allows for greater and longer-lasting efficiency of electrical components |
| Cost | Up to 8 times the cycle life compared to equivalent SLA | A low upfront cost, but a high cost of ownership in long run | Lower total cost of ownership |
| Environmental effect | clean technology, safer and more environment friendly | contains the heavy metal - lead |
The comparison between LFP and NCM
| Items | LiFePO4 Battery | LiNiCoMnO2 Battery(NCM) |
| Nominal Voltage | 3.2V | 3.7V |
| Discharging Rate |
≤10C
|
≤5C |
| Safety | Much more safe at high temperature, or in an accident, no explosion, no fire, successfully pass the safety test | Less safety performance at high temperature, or in an accident. difficult to pass the safety test, such as nail penetration test |
| Working Temperature | -20-70℃. | -20-55℃. |
| Cycle Performance |
More than 4000 cycles at 1C, 80%DOD. The EOL is still 100% after 500 cycles |
About 1500 cycles at 1C, 80%DOD. The EOL is below 98% after 500 cycles |
| Stability | The Olivine type crystal structure is the most stable one, and not decompose in high temperature | The Layer type crystal structure is less stable, easy to decompose and collapse |
| Material | Does not contain any heavy metals and rare metals, raw material can be easily obtained | Co is rare metal, and very limit resource on the globe |
Battery packaging:
