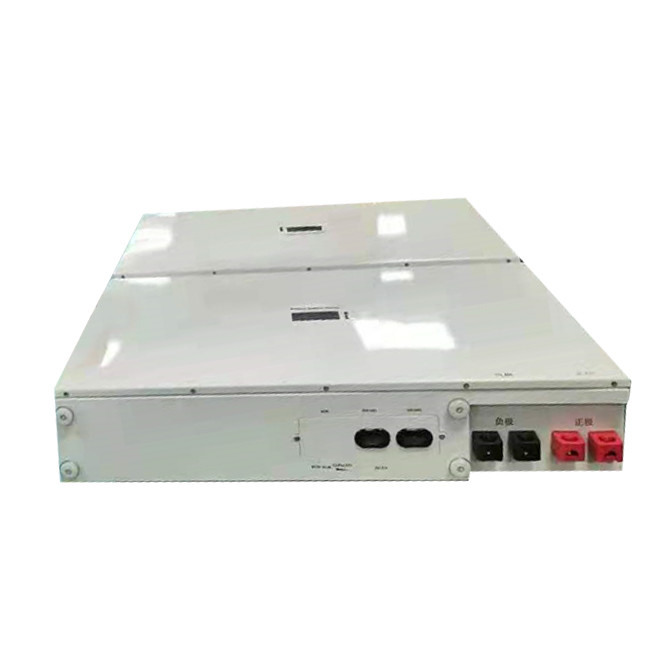

HESS 16S18P 48V 100Ah Lithium Battery Pack With 5KW Inverter

Product Details

Place of Origin: China

Brand Name: HUAXING

Certification: MSDS

Model Number: HX5-10KWH

Payment & Shipping Terms

Minimum Order Quantity: 5

Price: Negotiation

Packaging Details: Wood case packge

Delivery Time: 25day

Payment Terms: T/T

Supply Ability: 50 pks per day

Get Best Price
Product Details
High Light:

16S18P Lithium Battery Pack

,

48V 100Ah Lithium Battery Pack

,

HESS Lifepo4 Rechargeable Battery

Nominal Voltage:
51.2V
Nominal Capacity:
100Ah
Battery Combination:
16S18P
Nominal Energy Capacity:
5120WH
Max. Charge Current:
50A
Charge Time:
2-5 Hours
Max. Continuous Discharge Current:
50A
Peak Discharge Current:
100A
Total Weight:
55KG
Dimensions(L*W*H):
740*530*202mm
Application:
HESS,Telecom,Solar System
Installation:
Wall Mounted Or Floor Standing
Nominal Voltage:
51.2V
Nominal Capacity:
100Ah
Battery Combination:
16S18P
Nominal Energy Capacity:
5120WH
Max. Charge Current:
50A
Charge Time:
2-5 Hours
Max. Continuous Discharge Current:
50A
Peak Discharge Current:
100A
Total Weight:
55KG
Dimensions(L*W*H):
740*530*202mm
Application:
HESS,Telecom,Solar System
Installation:
Wall Mounted Or Floor Standing
Product Description

5KWh 48V 100Ah Lithium Battery Pack For Home Energy Storage System Equiped With 5KW Inverter


5KWH-10KWH Energy Storage System Briefly introduction
5 KWH ~10 KWH Wall-mounted Household PV Energy Storage System was developed and produced by
Huaxing which can be mainly used to support reliable power for household. This is a multifunctional inverter
power supply; it combines various functions of inverter, solar charger and battery charger to provide
uninterrupted power to the load.Its integrated LCD display allows users to set different parameters, such as
battery charging current, AC/solar charger priority, etc.

48V 100Ah 5KWh LiFePo4 Battery and5KW inverter Specification



Battery parameters Item Cell Battery pack
  Parameter 3.2V 6Ah 51.2V 100Ah
  Quantity 288 1


System capacity





5kWh (can be parallel to 10KWh)
Overall system efficiency 90%±5%
DOD 80%
Actual available capacity ≥4.6kWh
Cycle life Over 4000 cycles(0.3C cycle, 25℃(capacity retention 80%)
Continuous charging current(A) 20A(adjustable)
Continuous discharge current(A) 40A (adjustable)
Full power charge and discharge rate 0.3 C
energy capacity of battery 25°C 4kWh (100% DOD @ 1C rate)
  - 20°C 3.6 kWh(100% DOD @ 1C rate)
Storage temperature < 45°C is the best storage temperature
Self-discharge 25°C,≤5% per month
IP rating of enclosure IP55
Inverter Specification
Model 5.5kW
Parameters Continuous power:5.5(KW) Peak power:11(KW)5S
  Nominal rated voltage:(Vdc)51.2 (Lithium iron)
  Charging current:(A)0~80(adjustable)
  Cut-off voltage:(V)58.4
  Maximum discharge current:(A)100(adjustable)
  Grid voltage range: 230VAC±5% Input maximum current:100A Frequency:50Hz
  Inverter voltage range:230Vac±5%(Inverter mode) Frequency:50/60Hz±1%(Automatic detection) Output waveform:Pure sine wave Efficiency:>90%(88%resistive load) Protection function:Over voltage and under voltage protection, overload protection, short circuit protection, over temperature protection.


Battery pack interface

HESS 16S18P 48V 100Ah Lithium Battery Pack With 5KW Inverter 0

HESS 16S18P 48V 100Ah Lithium Battery Pack With 5KW Inverter 1

HESS 16S18P 48V 100Ah Lithium Battery Pack With 5KW Inverter 2


Working principle



HESS 16S18P 48V 100Ah Lithium Battery Pack With 5KW Inverter 3


Installation Location:

Consider the below points before selecting installation location:

1  There are no flammable or explosive materials

2. The floor is flat and level.

3 Install the system in a visible location so that user can read the LCD display parameter at any time.

4 The area is completely waterproof

5 Make sure there is 20 cm distance from the two side, 50 cm distance from bottom of the unit.

6 The ambient temperature is within the range from 0°C to 55°C.

7 The temperature and humidity are maintained at a constant level.

8 The installation areas shall avoid of direct sunlight

9 The distance from air outlet of inverter is more than 0.5 meters.

10 The distance from heat source is more than 2 meters.

11 There is minimal dust and dirt in the area.
