Rechargeable 72V 24Ah Electric Scooter Lithium Battery

Basic Information
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX7224
Minimum Order Quantity: 5pcs
Packaging Details: Carton
Delivery Time: 20days
Payment Terms: T/T
Supply Ability: 10000pcs per month
Voltage: 76.8V Capacity: 24Ah
Max Charge Current: 0.5C Max Discharge Current: 1C
Peak Current: 2C OEM: YES
ODM: YES Life Cycles: Over 2000times
High Light:

24Ah Electric Scooter Lithium Battery

,

72V Electric Scooter Lithium Battery

,

24Ah Lithium Battery For E Scooter

Rechargeable 72v 24Ah Lithium Battery for Electric Scooter/Golf Cart/Forklift/RV


These batteries are superior to lead-acid batteries because they have
One kind. Extremely safe and stable chemical composition: The built-in PCB
and/or BMS can balance and protect the battery.
b. Long life: It can be recycled, preferably 2000 times, which is 8 times that of lead-acid batteries.
C. Lighter weight, best power-to-weight ratio: 1/3 of the weight of lead-acid batteries.
d. Good high temperature and high temperature resistance
e. The self-discharge rate is low, less than 3% per month.
F. There is no memory effect and efficient charging.
G. Environmental protection: Clean and green energy will not pollute our environment.

1.Various sizes, models and capacities can be designed and customized, and OEM
customization is welcome.
2.Large capacity, light weight and long use time.
3.Long cycle life and high safety performance.



 72v24ah

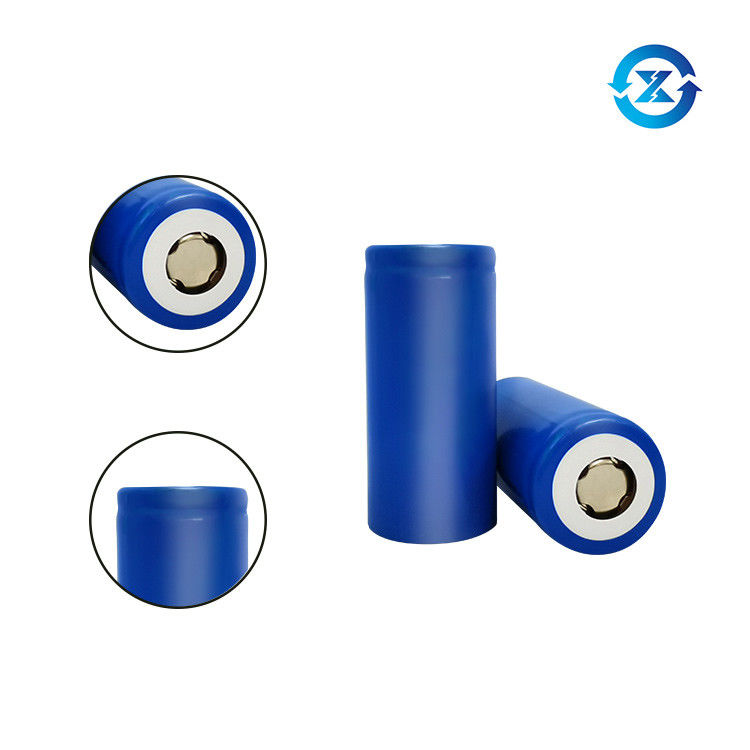

Cell 32700-3.2V6.0Ah
Connection 4P24S
Normal voltage 76.8V
Normal capacity 24.0Ah
Normal energy 1.84kWh
Communication way RS485/GPS/GPRS
IP IP67
Working voltage ranges DC60V~87.6V
Case dimensions(mm) 180*160*368




Main Application
  • Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, bus, golf
cart, forklift, RV and so on.
  • Telecommunication, back-up power supply, UPS
  • Storage energy for solar system, solar street, home energy storage and so on.

Rechargeable 72V 24Ah Electric Scooter Lithium Battery 0




Our safety tests for our lifepo4 battery:

Rechargeable 72V 24Ah Electric Scooter Lithium Battery 1




Our life cycle tests for our lifepo4 battery:

Rechargeable 72V 24Ah Electric Scooter Lithium Battery 2


Related lifepo4 battery:

Rechargeable 72V 24Ah Electric Scooter Lithium Battery 3



Rechargeable 72V 24Ah Electric Scooter Lithium Battery 4

More information about our common lifepo4 battery types or

customized types,

Pls free free to contact us directly.


Huaxing New Energy
Rechargeable 72V 24Ah Electric Scooter Lithium Battery 5

About us:
HUAXING NEW ENERGY is a group company.

The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its subsidiary companies
including Hunan Huaxing New Energy Technology Co., Ltd which produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4 battery pack.

We has over 50,000 m2 CELL and PACK workshop. With an annual productivity of 3GWh
cell equipment and a technical R&D team, its annual sales volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and ISO45001:2018.
Our 32700 lifepo4 cell passes: UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional customized serive, Competitive
price, and Great sales team.
ONLY IN 32700 LIFEPO4 BATTERY
FUCOUS MAKES US PROFESSIONAL!!!





Our Factory Environment: Welcome to visit us!

Rechargeable 72V 24Ah Electric Scooter Lithium Battery 6

Rechargeable 72V 24Ah Electric Scooter Lithium Battery 7

Rechargeable 72V 24Ah Electric Scooter Lithium Battery 8

OUR CERTIFICATIONS


All certifications

The comparison between SLA and LFP



Items LFP battery SLA battery Remarks
Weight high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight low energy density: 32-37Wh/kg LFP battery is about 70% size and weight of SLA battery, lower the total weight of application
Cycle life 4000 cycles and more 400-500 cycles LFP can be used for almost 10 years; SLA can only last for max. 2 years
Capacity Utilisation 80 to 100% 50 to 60% Most lead acid batteries do not recommend more than 50% depth of discharge
Efficiency allows for the same amp hours both in and out voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency
Voltage maintain voltage throughout the entire discharge cycle drops consistently throughout the discharge cycle. A stable droping voltage allows for greater and longer-lasting efficiency of electrical components
Cost Up to 8 times the cycle life compared to equivalent SLA A low upfront cost, but a high cost of ownership in long run Lower total cost of ownership
Environmental effect clean technology, safer and more environment friendly contains the heavy metal - lead
