| Place of Origin: | China |
|---|---|
| Brand Name: | HUAXING |
| Certification: | MSDS |
| Model Number: | HX4820 |
| Minimum Order Quantity: | 5pcs |
| Packaging Details: | Carton |
| Delivery Time: | 15days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs per month |
| Voltage: | 51.2v | Capacity: | 20Ah |
|---|---|---|---|
| Max Charge Current: | 0.5C | Max Discharge Current: | 1C |
| Peak Current: | 2C | OEM: | YES |
| ODM: | YES | Life Cycles: | Over 2000times |
| High Light: | 20Ah 48V LiFePO4 Battery,3P16S 48V LiFePO4 Battery,3P16S 48v Battery For Electric Scooter |
||
Advantages:
1.This 48V20Ah LFP battery system has built-in BMS and stainless steel box painted in
black or white. 1. Maintenance free. Modular design for easy installation and capacity expansion.
2. Long cycle life (more than 3000 cycles at 80% DOD)
3. Bulit-in smart BMS with multiple protection and communication functions
4. Wide working temperature range and high reliability
5. Multiple battery units can be connected in parallel,suitable for high energy storage applications.
6. Compatible with various charge controllers and inverters
7. Widely used for off-grid solar system storage, telecom back-up, central data center...etc.
| 48v 20ah | |

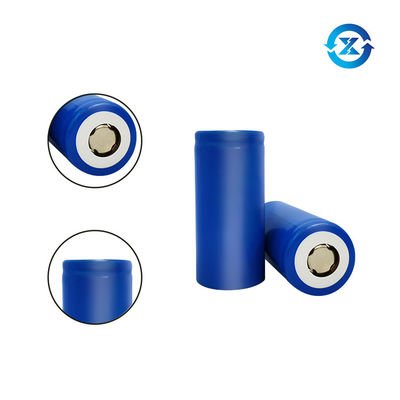

| Cell | 32700-3.2V6.0Ah |
| Connection | 3P16S |
| Normal voltage | 51.2V |
| Normal capacity | 18.0Ah |
| Normal energy | 0.920kWh |
| Communication way | GPS/GPRS |
| IP | IP54 |
| Working voltage ranges | DC40V~58.4V |
| Case dimensions(mm) | 240*145*162 |
Six types for diifferent model e-scooter
Our safety tests for our lifepo4 battery:
Our life cycle tests for our lifepo4 battery:
Related lifepo4 battery:
More information about our common lifepo4 battery types or
customized types,
Pls free free to contact us directly.
