Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX7236
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T
Supply Ability: 10000pcs per month
Voltage: |
76.86V |
Capacity: |
36Ah |
Max Charge Current: |
0.5C |
Max Discharge Current: |
1C |
Peak Current: |
2C |
OEM: |
YES |
ODM: |
YES |
Life Cycles: |
Over 2000times |
Voltage: |
76.86V |
Capacity: |
36Ah |
Max Charge Current: |
0.5C |
Max Discharge Current: |
1C |
Peak Current: |
2C |
OEM: |
YES |
ODM: |
YES |
Life Cycles: |
Over 2000times |
72V 36AH e-scooter lithium battery pack specification.
| No. | Item | General Parameter |
| 1 | Model | HX7236 |
| 2 | Standard Capacity | 36AH |
| 3 | Rated Voltage | 76.8V |
| 4 | Max Charge Voltage | 87.6V |
| 5 | Discharge Cut Off Voltage | 60V |
| 6 | Standard Charge Current | 10A |
| 7 | Max Continuous Discharge Current | 30A |
| 8 | Peak Instant Discharge Current | 60A |
| 9 | Dimension(ABS) | Customized |
| 10 | Total weight(Approx.) | 28kg |
| 11 | Operate Temperature | -20°C~60°C |
| 12 | Built-in BMS | YES |
| 13 | Cycle Times | 2000 cycles |
Our safety tests for our lifepo4 battery:
Our life cycle tests for our lifepo4 battery:
Related lifepo4 battery:
More information about our common lifepo4 battery types or
customized types,
Pls free free to contact us directly.
About us:
HUAXING NEW ENERGY is a group company.
Our Factory Environment: Welcome to visit us!
OUR CERTIFICATIONS
Cell packaging:
Battery packaging:

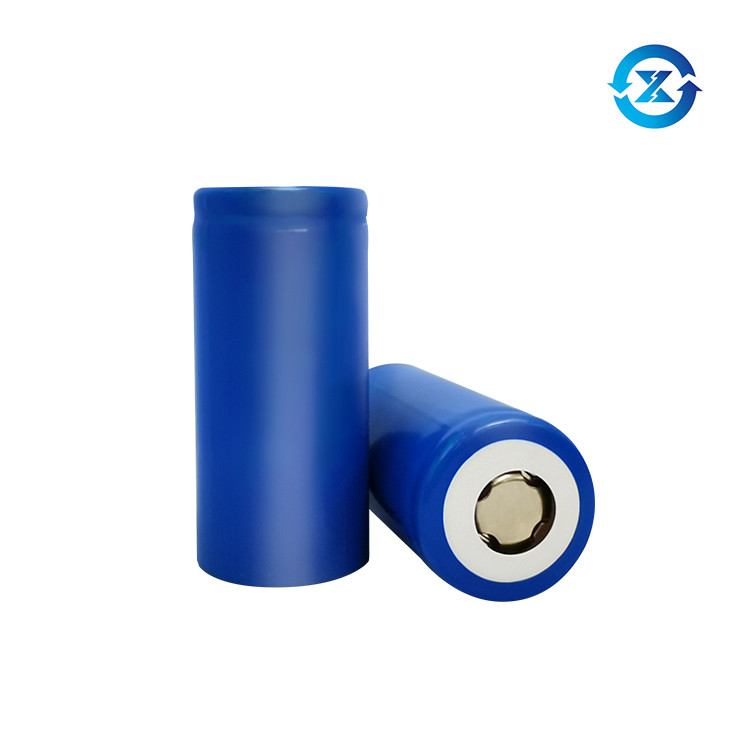

Why you choose us cylidnrical LiFePo4 cell
| Items |
Cylindrical
|
Prismatic |
| Safety |
1,Steel case, mechanically stable, higher unloading ability because of round shape 2,Safety valve protection and tabs disconnecting for high pressure
|
1,plastic and Aluminum plastic shell mostly, poor mechanical character, especially during crash 2,Safety valve protection only, tabs wouldn’t disconnect even for high pressure |
|
Internal Structure
|
The cathode and anode pole piece is one piece, better to keep conformity
|
Many negative and positive pole pieces connected in parallel |
| Others |
1,Good for cooling and temperature controlling, 2, Easy and cost lower for replacement 3,High-maturity and standardized process like A123,Panasonic,LG |
1, Poor cooling because of compact stack 2,Cost higher when the cell need for replacement 3,Hard to keep standard model for all manufacturers
|
