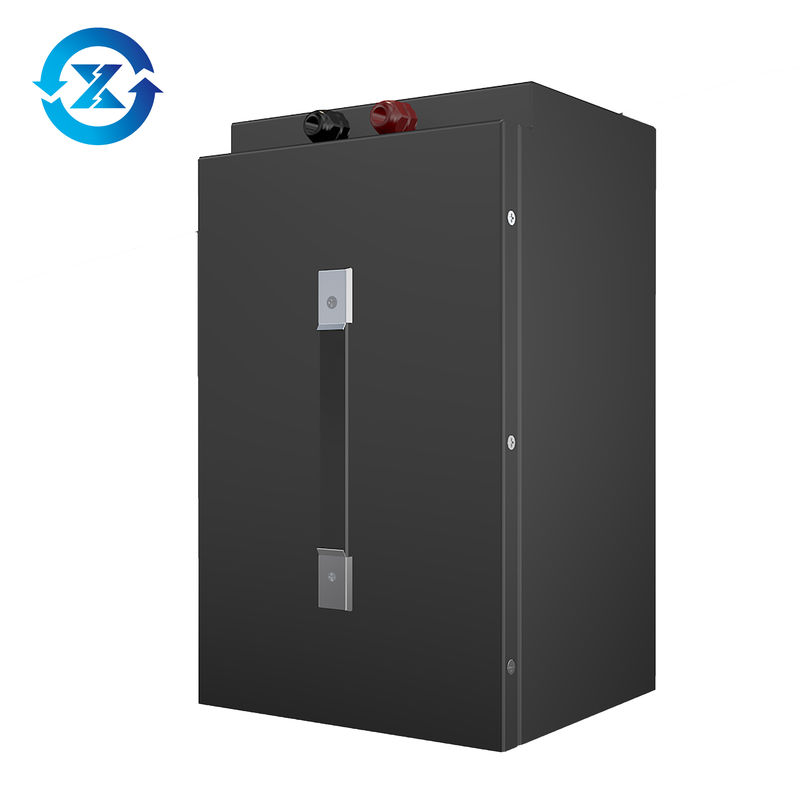

Long Lasting 48V 24AH Electric Vehicles Battery

Basic Information
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX4824
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per month
Voltage: 51.2V Capacity: 24Ah
Max Charge Current:: 15A Max Discharge Current:: 30A
Peak Current:: 60A OEM: YES
ODM: YES Life Cycles: Over 2000times
Weight: 13kg Application: E-scooter,motorcycle,e-bike
High Light:

24AH Electric Vehicles Battery

,

MSDS 48V Electric Vehicles Battery

,

24AH High Capacity Lithium Battery

 Long lasting 48V 24AH LiFePo4 battery for Electric vehicles to replace lead acid battery


48V24AH LiFePo4 lithium battery pack specification

No.
Item
General Parameter
1
Model
HX4824
2
Standard Capacity
24AH
3
Rated Voltage
51.2V
4
Max Charge Voltage
58.4V
5
Discharge Cut Off Voltage
40V
6
Standard Charge Current
15A
7
Max Continuous Discharge Current
30A
8
Peak Instant Discharge Current
60A
9
Dimension(ABS)
Customized
10
Total weight(Approx.)
13kg
11
Operate Temperature
-20°C~60°C
12
Built-in BMS
YES
13
Cycle Times
2000 cycles



Six types for diifferent model e-scooter

Long Lasting 48V 24AH Electric Vehicles Battery 0






Main Application
cart, forklift, RV and so on.

Long Lasting 48V 24AH Electric Vehicles Battery 1




Our life cycle tests for our lifepo4 battery:

Long Lasting 48V 24AH Electric Vehicles Battery 2




Related lifepo4 battery

Long Lasting 48V 24AH Electric Vehicles Battery 3

Long Lasting 48V 24AH Electric Vehicles Battery 4


Huaxing New Energy
Long Lasting 48V 24AH Electric Vehicles Battery 5

About us:
HUAXING NEW ENERGY is a group company.

The Headquarter is Shenzhen Huaxing New Energy Co., Ltd, its subsidiary companies
including Hunan Huaxing New Energy Technology Co., Ltd which produces 32700 lifepo4
cells and JuXing New Energy Co., Ltd which produces 32700 lifepo4 battery pack.

We has over 50,000 m2 CELL and PACK workshop. With an annual productivity of 3GWh
cell equipment and a technical R&D team, its annual sales volume can reach RMB two billion,
paying annual tax of RMB 100 million for the local area.
We are manufacturer with ISO9001:2015 and ISO14001:2015 and ISO45001:2018.
Our 32700 lifepo4 cell passes: UL1642/BIS/PSE/CE/Rohs/IEC62619/IEC61960/IEC62133/
and CB/UN38.3 and MSDS.
Strong R&D team, Strict Quality Control, Professional customized serive, Competitive
price, and Great sales team.
  ONLY IN 32700 LIFEPO4 BATTERY
FUCOUS MAKES US PROFESSIONAL!!!

Long Lasting 48V 24AH Electric Vehicles Battery 6

Long Lasting 48V 24AH Electric Vehicles Battery 7

Long Lasting 48V 24AH Electric Vehicles Battery 8


The comparison between LFP and SLA

  LFP battery SLA battery Remarks
Weight high energy density: 110-120Wh/kg, leads to a smaller size and lighter weight low energy density: 32-37Wh/kg LFP battery is about 70% size and weight of SLA battery, lower the total weight of application
Cycle life 4000 cycles and more 400-500 cycles LFP can be used for almost 10 years; SLA can only last for max. 2 years
Capacity Utilisation 80 to 100% 50 to 60% Most lead acid batteries do not recommend more than 50% depth of discharge
Efficiency allows for the same amp hours both in and out voltage drops quickly and reduces the batteries' capacity while charging and rapid discharging LFP battery has almost 100% efficiency while SLA battery has only maximum 75% efficiency
Voltage maintain voltage throughout the entire discharge cycle drops consistently throughout the discharge cycle. A stable droping voltage allows for greater and longer-lasting efficiency of electrical components
Cost Up to 8 times the cycle life compared to equivalent SLA A low upfront cost, but a high cost of ownership in long run Lower total cost of ownership
Environmental effect clean technology, safer and more environment friendly contains the heavy metal - lead
