Product Details
Place of Origin: China
Brand Name: HUAXING
Certification: MSDS
Model Number: HX48100
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10000pcs per month
Voltage: |
48V |
Capacity: |
100Ah |
Max Charge Current: |
30A |
Max Discharge Current: |
30A |
Peak Current: |
60A |
OEM: |
YES |
ODM: |
YES |
Life Cycles: |
Over 2000times |
Configuration: |
15S17P |
Voltage: |
48V |
Capacity: |
100Ah |
Max Charge Current: |
30A |
Max Discharge Current: |
30A |
Peak Current: |
60A |
OEM: |
YES |
ODM: |
YES |
Life Cycles: |
Over 2000times |
Configuration: |
15S17P |

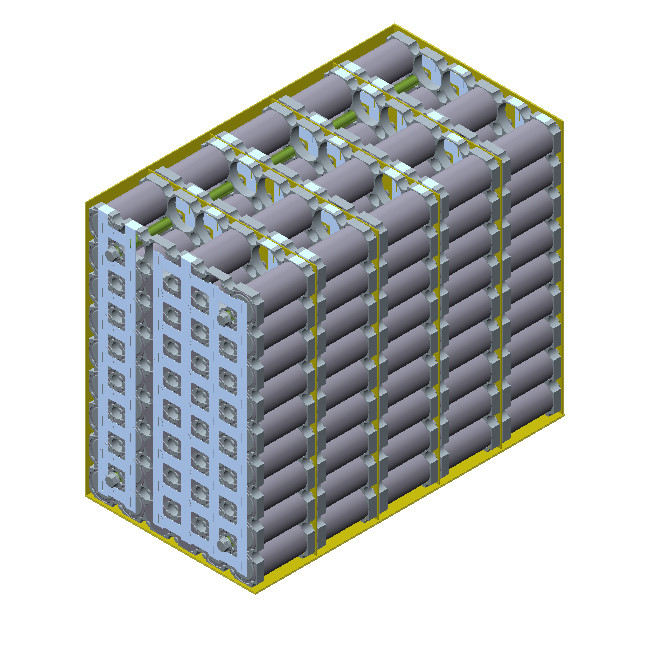

48V 100AH Lithium battery pack specification
| 48v 100ah | |
| Cell | 32700-3.2V6.0Ah |
| Connection | 17P15S |
| Normal voltage | 48V |
| Normal capacity | 100Ah |
| Normal energy | 4800WH |
| Weight | ~45kg |
| IP | IP54 |
| Working voltage ranges | DC37.5V~54.75V |
| Case dimensions(mm) | 380*304*202mm |
Six types for diifferent model e-scooter
48V100AH dimension
LiFePo4 battery advantages
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20℃~60℃
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Our life cycle tests for our lifepo4 battery:
